Hammond Power
CRX04D6DC

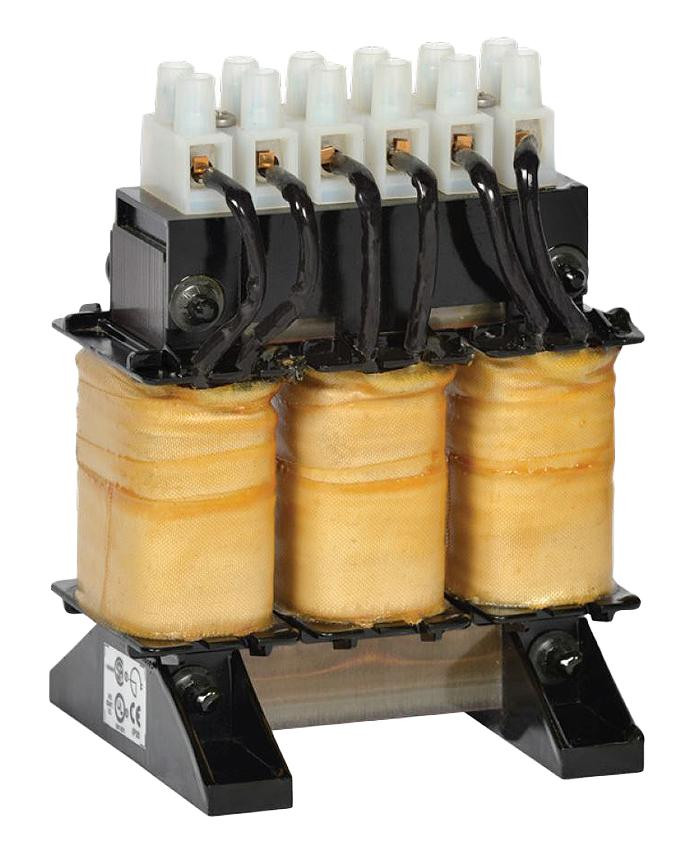

Line Reactor, Three Phase, 4.6 Amp, 1hp, 240V, 60Hz, 5% Impedance, 4.67mH Inductance, 29 Watts Loss, Open Core and Coil, Terminal Block
$117.42$117.42 -
Hammond Power
CRX04D8AE
Line Reactor, Three Phase, 4.8 Amp, 3hp, 480V, 60Hz, 3% Impedance, 4.70mH Inductance, 22 Watts Loss, Terminal Block, Type 1/IP20 Enclosure Type
$246.97$246.97 -
Hammond Power
CRX04D8PC
Line Reactor, Three Phase, 4.8 Amp, 3hp, 380V, 50Hz, 5% Impedance, 7.784mH Inductance, 35 Watts Loss, Open Core and Coil, Terminal Block
$150.00$150.00 -
Hammond Power
CRX0515BC
Line Reactor, Three Phase, 515 Amp (515A), 450hp, 480V, 60Hz, 5% Impedance, Mounting Pads, Open Core & Coil, Centurion R Series
$2,378.79$2,378.79 -
Hammond Power
CRX06D1AC
Line Reactor, Three Phase, 6.1 Amp, 5hp, 600V, 60Hz, 3% Impedance, 4.67mH Inductance, 29 Watts Loss, Open Core and Coil, Terminal Block
$142.42$142.42 -
Hammond Power
CRX06D1BC
Line Reactor, Three Phase, 6.1 Amp, 5hp, 600V, 60Hz, 5% Impedance, 7.78mH Inductance, 35 Watts Loss, Open Core and Coil, Terminal Block
$171.21$171.21 -
Hammond Power
CRX07D5AE
Line Reactor, Three Phase, 7.5 Amp (7.5A), 2hp, 208V, 60Hz, 3% Impedance, 1.31mH Inductance, 18 Watts Loss, N1 Enclosure Style, Termination Style 1, 10 x 8 x 8.13" (WDH), HPS Centurion R Series
$272.73$272.73 -
Available Now!
Available Now!Hammond Power
CRX07D5DC
Line Reactor, Three Phase, 7.5 Amp (7.5A), 2hp, 208V, 60Hz, 2.33mH Inductance, HPS Centurion R Series
$147.73$147.73 -
Hammond Power
CRX07D6AC
Line Reactor, Three Phase, 7.6 Amp, 5hp, 480V, 60Hz, 3% Impedance, 3.06mH Inductance, 31 Watts Loss, Open Core and Coil, Terminal Block
$100.76$100.76 -
Hammond Power
CRX07D6AE
Line Reactor, Three Phase, 7.6 Amp (7.6A), 5hp, 480V, 60Hz, 3% Impedance, 3.06mH Inductance, 31 Watts Loss, N1 Enclosure Style, Termination Style 1, 10 x 8 x 8.13" (WDH), HPS Centurion R Series
$253.79$253.79 -
Hammond Power
CRX10D7CC
Line Reactor, Three Phase, 10.7 Amp, 3hp, 240V, 60Hz, 5% Impedance, 1.64mH Inductance, 37 Watts Loss, Open Core and Coil, Terminal Block
$149.24$149.24 -
Hammond Power
CRX11D8PC
Line Reactor, Three Phase, 11.8 Amp, 7.5hp, 380V, 50Hz, 5% Impedance, 2.96mH Inductance, 57 Watts Loss, Open Core and Coil, Terminal Block
$235.61$235.61
Acting as electrical buffers, line and load reactors protect equipment by reducing incoming current surges and harmonic currents.
Line reactors are generally used on the line side of a drive, load reactors are often used with motor circuits on the load side.
