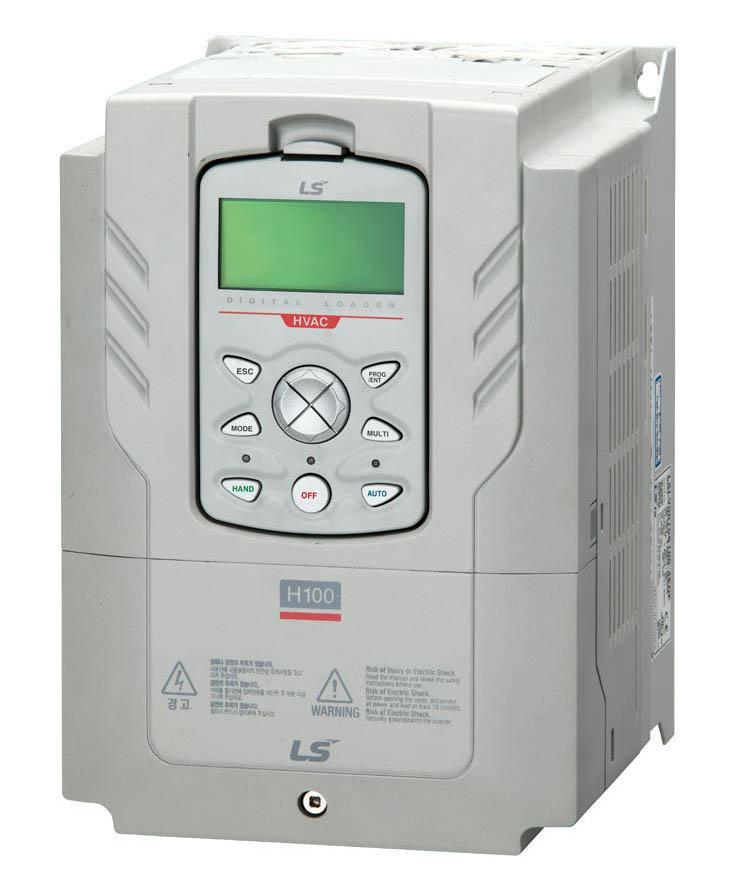

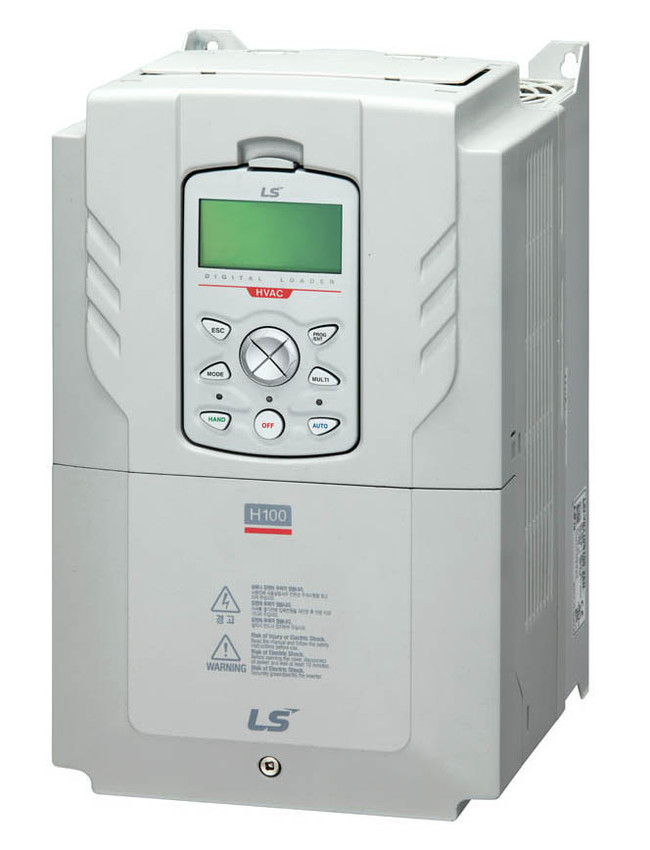

The H100+ (Plus) takes the H100 series features and adds new fan and pump control functions! This series is an eco-friendly and energy saving solution for your fan and pump systems.
This series is available in 240V/3 phase from 1hp to 25hp as well as 480V/3 phase from 1hp to 80hp.
The H100+ series has all of the existing features of the H100 series PLUS:
No-flow control
Flow monitoring
PI auxiliary (suction/level/vacuum) control
Over-cycling protection
Differential level detection
Low/high feedback detection
Setpoint timeout
Current limit
Thrust bearing control
Pump minimum speed
Improved Hand-Off-Auto keypad
Power-On run for keypad command
Lead-lag
Enhanced PID performance
Simplify PID group
Various sleep mode and method
Selectable wake-up method (absolute, deviation)
Wake-up disable mode
Backspin timer
Single phase protection - UL tested and approved for use on single phase power
Dual rating - can be used for normal or heavy duty applications
VFD, 2hp, 1.5kW, 380-480VAC, Three Phase, 4A, LCD Keypad, UL Open, Built-in EMC Filter, 6.3 x 9.13 x 7.13", H100+ Series, This is the Latest Version of LSLV0015H100-4COFN, 6731002600
VFD, 1hp, 0.75kW, 200-240VAC, Three Phase, 5A, LCD Keypad, UL Open, 6.3 x 9.13 x 7.13" (WHD), H100+ Series, This is the Latest Version of LSLV0008H100-2CONN, 6730000100
VFD, 10hp, 7.5kW, 200-240VAC, Three Phase, 30A, LCD Keypad, UL Open, 6.3 x 9.13 x 7.13", H100+ Series, This is the Latest Version of LSLV0075H100-2CONN, 6730000600
VFD, 3hp, 2.2kW, 200-240VAC, Three Phase, 12A, LCD Keypad, UL Open, 6.3 x 9.13 x 7.13", H100+ Series, This is the Latest Version of LSLV0022H100-2CONN, 6730000300
