UX3-R5VPN

UX3-R5VPN

Alt: UX3 Series

$116.03

Photoelectric Sensor, Ultra-Extreme Miniature, 12-24VDC, 20mA, Diffuse Reflective, PNP Output, Light On, Infrared LED, 3 to 50mm Detecting Range, Embedded, Cable, IP67

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
High-speed detection with built-in amplifier design.
Description

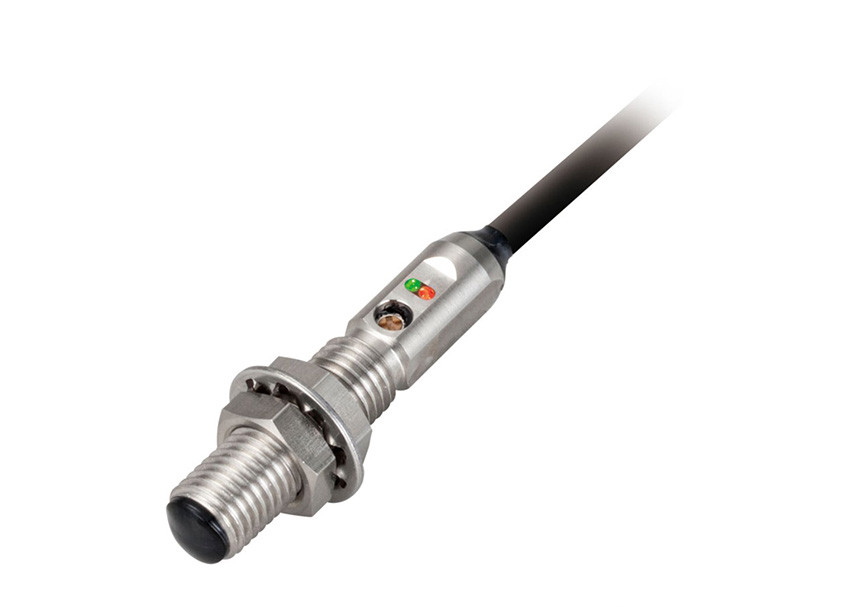

The TAKEX UX3-R5VPN offers high-performance sensing with a PNP output type for expanded system compatibility. This compact M6 stainless-steel photoelectric sensor combines retroreflective detection, built-in amplification, and IP67 protection to ensure consistent operation in harsh industrial conditions. Its small footprint and fast 0.5 ms response make it ideal for conveyor automation, assembly robots, and compact machinery where precision detection and rapid feedback are critical.

Key Features

  • PNP open-collector output for seamless integration with sourcing-type input PLCs.
  • Retroreflective sensing up to 50 mm (depending on reflector type and target color).
  • Compact M6 threaded design enables installation in tight or confined equipment areas.
  • Stainless-steel SUS303 housing for high mechanical strength and corrosion resistance.
  • Integrated amplifier and visible red LED for simplified setup and reliable alignment.
  • Fast 0.5 ms response ensures real-time detection in high-speed applications.
  • Adjustable sensitivity control dial for accurate tuning in reflective or variable backgrounds.
  • LED status indicators for operation (orange) and stability (green) to assist in diagnostics.
  • Stable power performance with 12–24 V DC input and low power consumption.
  • Built for industrial durability—resistant to shock, vibration, and temperature fluctuations.

Certifications & Compliance

  • Protection class: IP67 – complete protection against dust and water ingress.
  • Electrical protection: reverse-connection, short-circuit, and reverse output protection built in.
  • Insulation resistance: ≥ 20 MΩ at 500 V DC; dielectric withstand voltage: 500 VAC for 1 minute.
  • Vibration resistance: 10–55 Hz, double amplitude 1.5 mm; shock resistance: 500 m/s² (50 G).
  • Complies with standard CE and RoHS directives for global industrial applications.
