Takex
ASG-Z15RPN
Photoelectric Sensor, Glass Water Detection, PNP, Convergent, 2 Red LEDs, Light On, 15mm Or Less Detect, Cable, IP40
$81.18
ASG-Z15R
$81.18
Photoelectric Sensor, Glass Water Detection, NPN, Convergent, 2 Red LEDs, Light On, 15mm Or Less Detect, Cable, IP40
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description

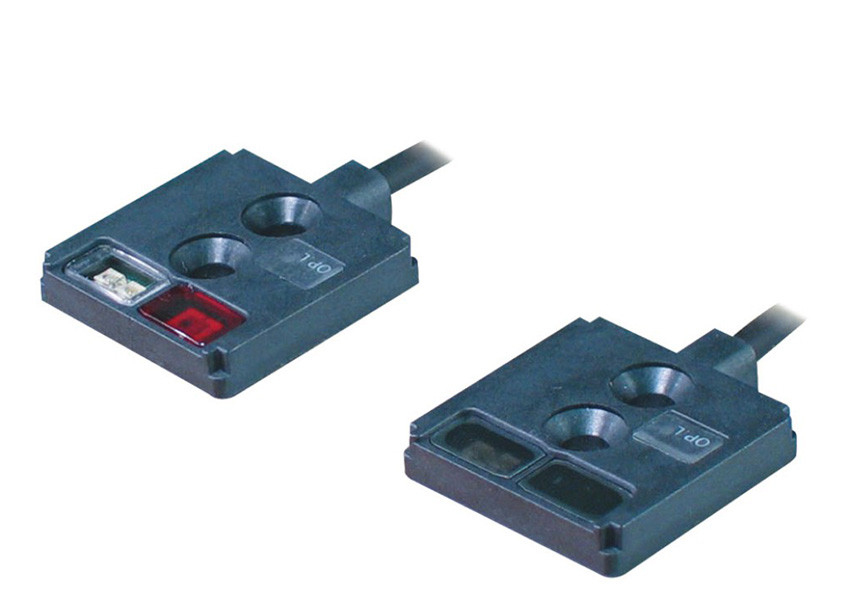

The Takex ASG Series delivers reliable detection of transparent and warped materials where standard sensors fail. Designed to mount flush in robot end-effectors and tight automation spaces, ASG sensors use dual red-LED optical technology to detect tilted or irregular transparent surfaces with stability and speed.
Key Features
- Reliable transparent object detection — Accurate sensing of inclined or warped glass and clear materials.
- Dual red-LED optical system — Improved stability and precision for tilted or irregular surfaces.

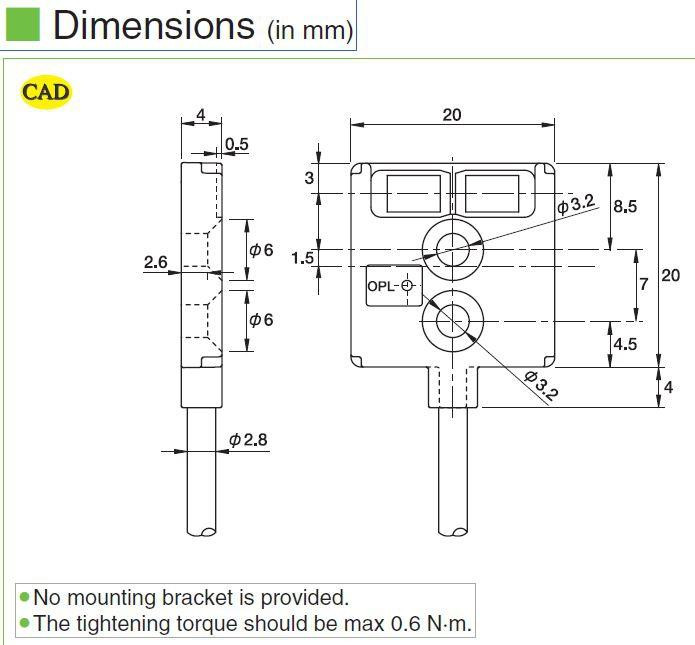

- Ultra-thin 4 mm embedded amplifier — Flush mounting for robot end-effectors and compact assemblies.
- Multiple sensing variants — Diffuse and convergent reflective models to suit different detection ranges and tolerances.
- Output flexibility — Light-ON models available with NPN or PNP outputs to match control systems.
- Fast response — Ideal for dynamic, high-speed automation tasks.
- Low-power industrial operation — 12–24 VDC operation with low current draw and short-circuit protection.
- Wide operating range — Built for industrial environments with robust temperature and humidity tolerances.
Certifications & Approvals
- CE Marking — Conformity with applicable European safety and environmental directives.
- Japanese manufacturing quality — Designed and produced in Japan for precision and reliability.
