AE18-0750-1800-AAAH-AA40

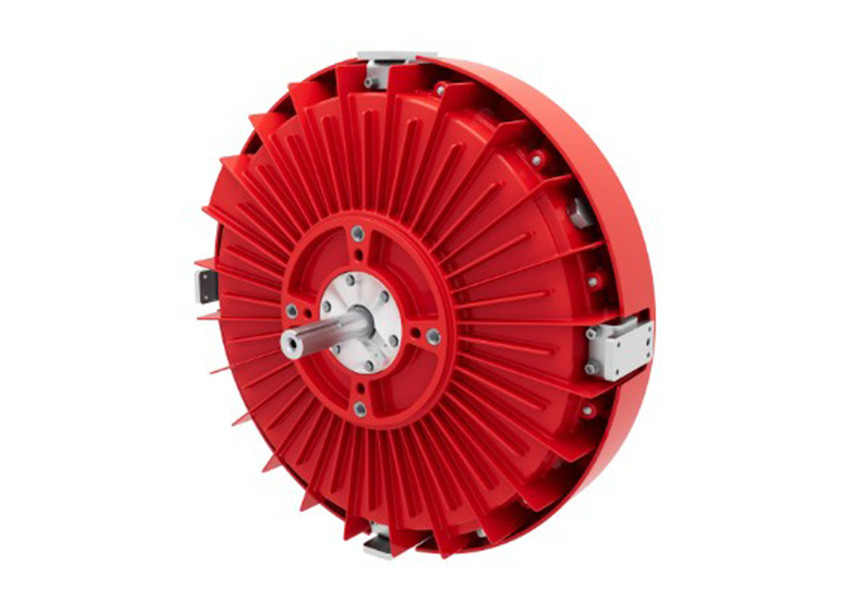

Introducing Infinitum’s Next-Generation Integrated Motor and Drive Systems - A game-changing solution for modern industrial applications, these motors combine powerful performance, smart control, and unmatched energy efficiency in a compact, lightweight design.

Key Features

All-in-One Integration

• Built-in Variable Frequency Drive (VFD) for precise speed control
• Seamless integration reduces installation time and footprint
• Ideal for fan, pump, and HVAC applications

Maximum Efficiency

• Up to 10% more efficient than traditional AC induction motors
• Delivers increased performance across a wide range of load conditions
• Reduces energy usage and operating costs

Quiet, Compact Power

• 50% lighter and 30% quieter than conventional motors
• 50% smaller form factor for easier installation
• High power density in a compact package

Sustainable by Design

• PCB stator uses 66% less copper
• 10x more reliable than iron-core, copper-wound stators
• Lightweight housing reduces transportation emissions by 30%
• Modular design extends product lifespan and enables component reuse

Smart Control & Flexibility

• Integrated I-con software for application-specific tuning
• Eliminates torque ripple, cogging, and core losses
• Operates at optimized frequencies to reduce audible noise

Technical Specifications

Electrical

• Voltage: 460 VAC (±10%), 3-phase
• Input Frequency: 60 Hz
• Analog References: 0–10 V, 0–20 mA
• Digital Inputs: 24 VDC

Mechanical

• Enclosure: TEFC/IP54 (Standard), IP65 (Heavy Duty)
• Mounting: Frame, C-face
• Relative Humidity: 95% non-condensing
• Elevation: Up to 1000m (de-rate above 1000m)
