IDEC
-
HE5B-M2PY
$27.93
In stock
5 Available

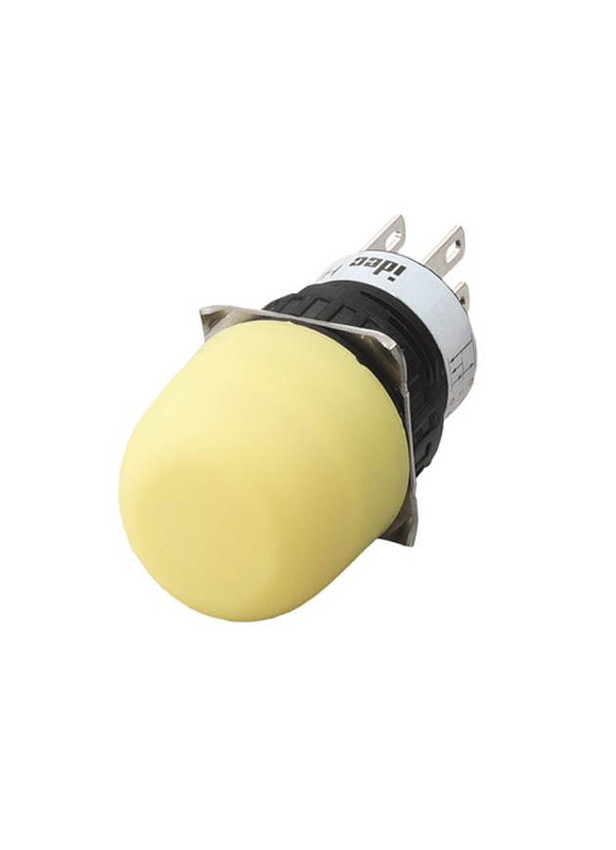

Enabling Switch, 16mm, Round Pushbutton Type, Yellow Silicone Rubber Cover, Snap Action Contacts
| Part Number | HE5B-M2PY |
|---|---|
| SKU | HE5B-M2PY |
| Manufacturer | IDEC |
| Product Type | Enabling Switch |
| Pushbutton Type | See Spec |
| Size | 16mm |
| NO/NC | See Spec |
| Illuminated/Non-Illuminated | Non-Illuminated |
| Material | See Spec |
| Product Series | HE Series |
| Voltage | 125VAC |
| Availability | Please Contact Us |
| Weight - lbs. | 0.100000 |
| Base Unit of Measure | Each |
Series Features Include:
- Ergonomically-designed OFF-ON-OFF 3-position operation
- Easy recognition of position 1 -> 2 transition made possible by snap action switch
- Sufficient load difference is provided for shifting from position 2 -> 3
- Light force needed to maintain position 2 so that operators can easily use the enabling switch
- The switch does not turn ON when being released from position 3 (OFF when pressed) to position 1 (OFF when released) (IEC60204-19.2.5.8)
- Two contacts are provided for safety
- IP65 (using the waterproof rubber cover)
- Mounts in a 16mm (5/8in) round hole
- B10d (cycle): 1.0E+05
