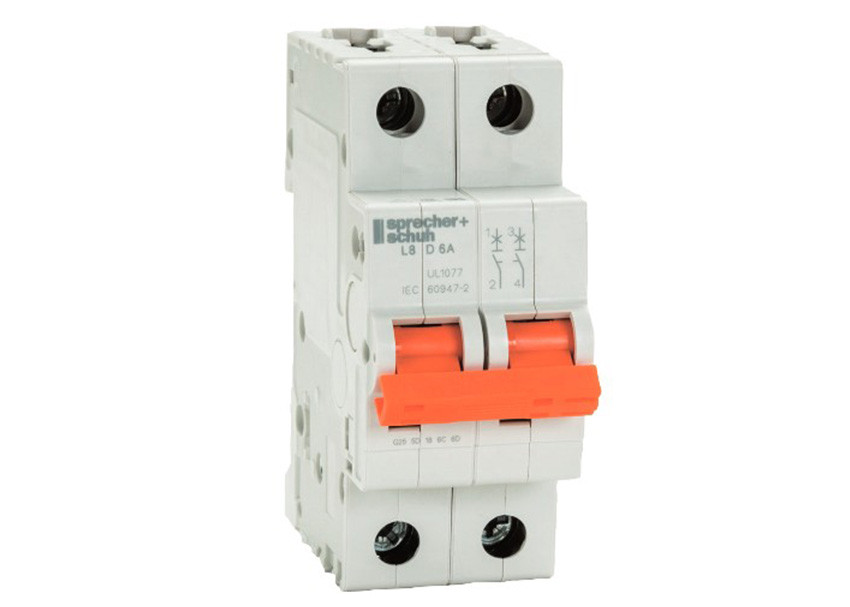

L8-40/2/D

The L8 Series Supplementary Protectors are designed to provide dependable overcurrent protection for a variety of low-voltage applications. Whether you're protecting control circuits, solenoids, actuators, appliances, or business equipment, these devices offer high-performance current limiting to keep your systems safe.

With global certifications and versatile features, the L8 Series is ideal for equipment installed anywhere in the world.

Key Features:

• Ideal for global use – Certified for international standards
• Supports a wide range of applications – Up to 480V AC and 96V DC
• Three tripping curves available – Choose from:
  • Type B – For resistive loads and general use
  • Type C – For motor loads and inductive circuits
  • Type D – For highly inductive or high inrush current applications
• Wide current range – Suitable for various application needs
• DIN rail mountable – For quick and easy installation
• IP20 protection – Prevents accidental contact for increased safety
• Color-coded status indicator – Easily see the breaker's current status
• Interrupting capacity up to 10 kA – Delivers strong performance in fault conditions

Certifications & Compliance:

• UL 1077 – Recognized as a Supplementary Protector
• CSA 22.2 No. 235 – Canadian Supplementary Standard
• CE Marked – Compliant with IEC 60947-2 Mini Circuit Breaker Standard
• Meets NFPA 79 (NEC) for use in U.S. industrial machinery
