Autonics
-
CR18-8AC
$59.95
In stock

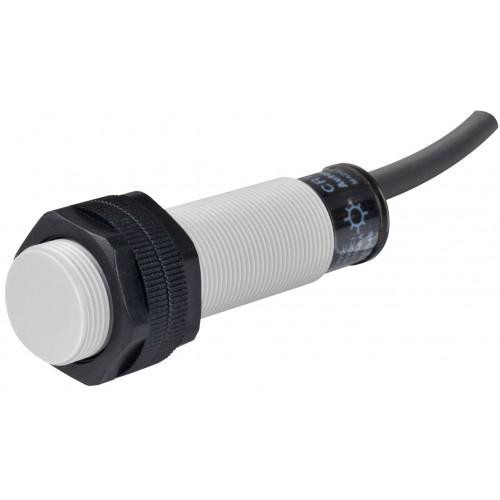

Capacitive Proximity Sensor, 18mm, AC, NC, 2 Wire, 90-250VAC, 8mm Range
Our Autonics CR series is an extremely cost effective line of capacitive proximity sensors.
This series makes it easy to adjust the sensing distance with built-in sensitivity adjustment volume. Capacitive proximity sensors will detect metallic and non-metallic materials including plastic, water, stone and wood.
Marshall Wolf Automation is your authorized Autonics distributor!
| Part Number | CR18-8AC |
|---|---|
| SKU | CR18-8AC |
| Size | 18mm |
| NO/NC | Normally Closed (NC) |
| Voltage | AC |
| NPN or PNP | See Spec or N/A |
| Connection | See Spec |
| Product Series | CR Series |
| Material | Plastic |
| Ratings | IP66 |
| Availability | Please Contact Us |
| Weight - lbs. | 0.1500 |
| Base Unit of Measure | Each |
Features Include:
- Able to detect Iron, metal, plastic, water, stone, wood, etc.
- Long life cycle and high reliability
- Easy to adjust the detecting distance by sensitivity adjustment potentiometer
- Applications to control level and position
- Size: 18mm or 30 mm
- 18mm is plastic housing, 30mm is nickel-plated brass
- Non-flush shielding
- 3-wire DC or 2-wire AC models
- Normally open or normally closed
- 3-wire DC available NPN or PNP
- Adjustable sensitivity
- Detecting distance to 15mm
- LED indication of output status
- 2 meter cable
- IP66 (18mm) or IP65(30mm)
