Invertek
ODP-2-22010-1HF4A-MN
VFD, 1hp, 0.75kW, 4.3 Amp (4.3A), 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Ourdoor Non-Switched, Frame 2: 10.1 x 7.4 x 7.2", 257 x 188 x 182mm (HWD)
$748.70$748.70 -
Invertek
OPT-2-ISOLO-S4
Local Isolator (Frame Size 4), Dimensions: 170 x 173 x 80mm (HWD), IP55/NEMA 12
$364.32$364.32 -
Invertek
ODP-2-66075-3H04N-MN
VFD, 75hp, 78A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$7,324.94$7,324.94 -
Invertek
ODP-2-32075-3HF42-MN
VFD, 7.5hp, 24A, 200-240V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,521.69$1,521.69 -
Available Now!
Available Now!Invertek
ODP-2-22010-1HF42-MN
VFD, 1hp, 4.3A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$628.32$628.32 -
Invertek
ODP-2-64150-3HF4N-MN
VFD, 150hp, 180A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$8,270.59$8,270.59 -
Invertek
ODP-2-42100-3HF4N-MN
VFD, 10hp, 30A, 200-240V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,121.50$2,121.50 -
Invertek
ODP-2-64150-3HF42-MN
VFD, 150hp, 180A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control (Free Non-Expedited LTL Freight from IL)
$6,522.47$6,522.47 -
Invertek
ODP-2-64120-3HF4N-MN
VFD, 120hp, 150A, 380-480V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$7,279.54$7,279.54 -
Invertek
ODP-2-42100-3HF42-MN
VFD, 10hp, 30A, 200-240V, 3 Phase Input/Output, TFT Keypad, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,924.56$1,924.56 -
Available Now!
Available Now!Invertek

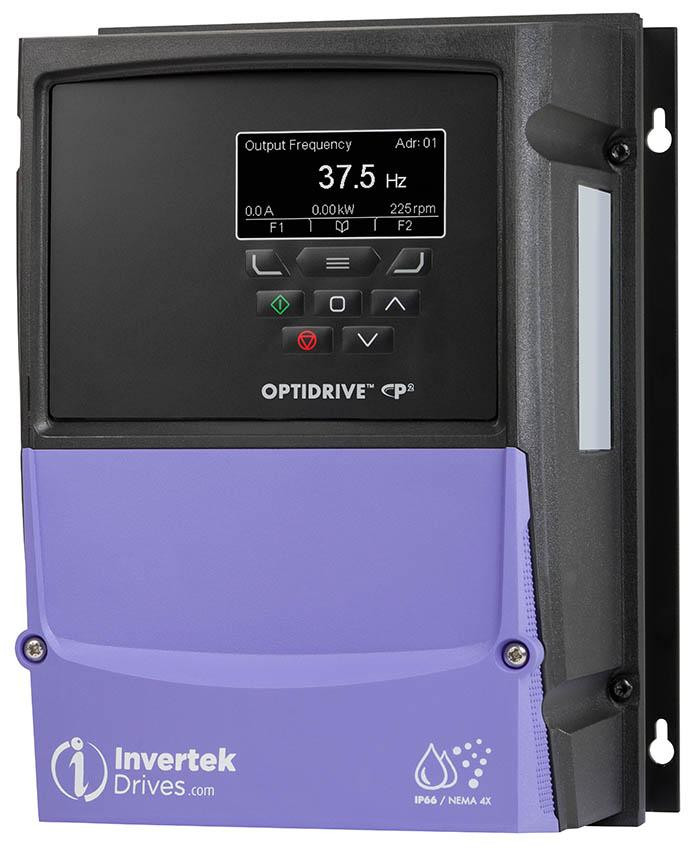

ODP-2-22030-3HF4A-MN
VFD, 3hp, 10.5 Amp (10.5A), 200-240V, 3 Phase Input/Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, Frame 2, High Performance Optidrive P2 Series, Advanced Motor Control
$1,048.61$1,048.61 -
Invertek
ODP-2-64120-3HF42-MN
VFD, 120hp, 150A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control (Free Non-Expedited LTL Freight from IL)
$6,503.90$6,503.90
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 3-year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
OptiPass: Bypass for Fan & Pump Control
- Available from 1 to 175hp in 200 to 480V models
- 3 Phase Input/Output
- BACnet built-in standard
- Reliable VFD and DOL control
- Low harmonic design - EN 61000-3-12 compliant
- Optional electronic bypass feature assures optimal time under VFD control with no need to manually change to bypass
- Shop the OptiPass Bypass drive now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
