Invertek
ODV-3-420460-3F1E-MN
VFD, 15hp, 11kW, 46 Amp, 200-240V, 3 Phase Input/Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240
$3,096.19$3,096.19 -
Invertek
ODV-3-320300-3F1E-MN
VFD, 10hp, 7.5kW, 30 Amp, 200-240V, 3 Phase Input/Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Frame 3: 12.2 x 8.31 x 9.25", 310 x 2
$2,863.34$2,863.34 -
Invertek
ODV-3-420300-101E-MN
VFD, 10hp, 7.5kW, 30 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 27
$2,859.12$2,859.12 -
Invertek
ODV-3-420240-101E-MN
VFD, 7.5hp, 5.5kW, 24A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 271m
$2,692.80$2,692.80 -
Invertek
ODV-3-320153-1F1E-MN
VFD, 5hp, 4kW, 15.3 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 3: 12.2 x 8.3 x 10.7", 310 x 211 x 273
$1,676.40$1,676.40 -
Invertek
ODV-3-240095-3F1A-MN
VFD, 4kW/5hp, 9.5A, 380-400V, 3-Phase, Internal EMC Filter, No Brake Transistor, TFT Display, Size 2, 10.12H x 7.4W x 7.17D", IP66 Non-Switched Outdoor
$1,104.05$1,104.05 -
Invertek
ODV-3-440390-3F12-MN
VFD, 25hp, 39A, 380-480V, 3 Phase, EMC Filter, TFT Display, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units
$2,088.24$2,088.24 -
Invertek
ODV-3-340180-3F1A-MN
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes
$1,694.35$1,694.35 -
Invertek
ODV-3-340180-3F12-MN
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units
$943.01$943.01 -
Invertek
ODV-3-220070-1F12-MN
VFD, 2hp, 7A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$652.61$652.61 -
Invertek
ODV-3-240140-3F1A-MN
VFD, 7.5hp, 14A, 380-480V, 3 Phase Input/Output, Keypad, EMC Filter, NEMA 4X, IP66, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control, TFT Keypad
$1,545.46$1,545.46 -
Invertek
ODV-3-621500-3F12-MN
VFD, 50hp, 150A, 200-240V, 3 Phase Input/Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units (Free Non-Expedited LTL Freight from IL)
$6,239.90$6,239.90
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 3-year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
OptiPass: Bypass for Fan & Pump Control
- Available from 1 to 175hp in 200 to 480V models
- 3 Phase Input/Output
- BACnet built-in standard
- Reliable VFD and DOL control
- Low harmonic design - EN 61000-3-12 compliant
- Optional electronic bypass feature assures optimal time under VFD control with no need to manually change to bypass
- Shop the OptiPass Bypass drive now

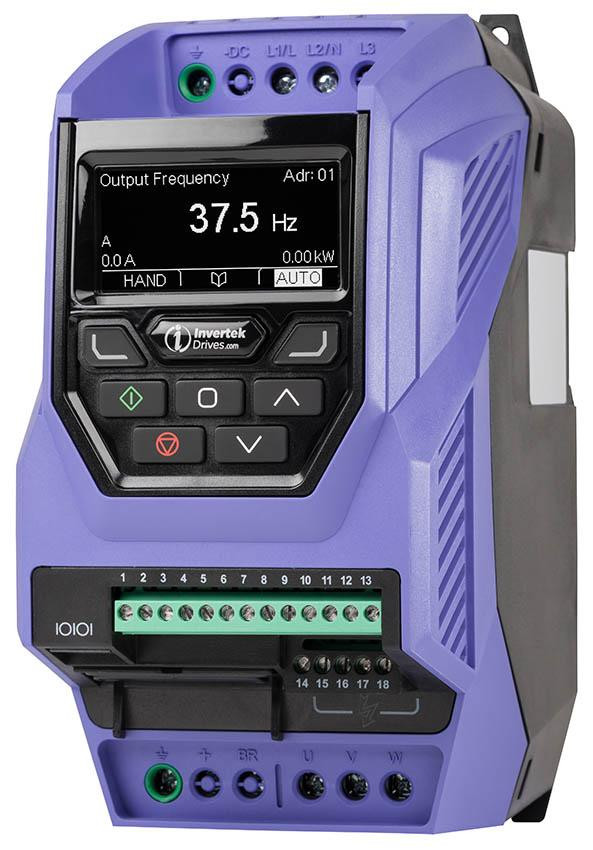

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
