Available Now!
Available Now!Invertek
OPT-3-STICK-IN
Bluetooth Communication/Rapid Communication Tool, Use with Invertek E3, P2 and Eco Drives, Use to Copy Parameters Between Drives, Copy/Backup/Restore, Provides Bluetooth Wireless Interface to PC/Phone
$158.40$158.40 -
Invertek
ODV-3-260041-301A-MN
VFD, 3hp, 4.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT
$1,183.25$1,183.25 -
Invertek
ODP-2-22020-1HF4A-MN
VFD, 2hp, 1.5kW, 7 Amp (7A), 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Ourdoor Non-Switched, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Frame 2
$782.50$782.50 -
Invertek
ODV-3-621800-3F12-MN
VFD, 60hp, 180A, 200-240V, 3 Phase Input/Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units (Free Non-Expedited LTL Freight from IL)
$7,440.05$7,440.05 -
Available Now!
Available Now!Invertek
OPT-3-PCKIT-IN
Optitools Programming Interface, Optistick Smart+Bluetooth Dongle+NFC Pad
$422.40$422.40 -
Invertek
ODP-2-72075-3HF4N-MN
VFD, 75hp, 202A, 200-240V, 3 Phase Input/Output, Frame 7, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$10,255.34$10,255.34 -
Invertek
ODP-2-44300-3HF42-MN
VFD, 30hp, 46A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,248.75$2,248.75 -
Invertek
ODV-3-260041-301E-MN
VFD, 3hp, 4.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, Disconnect Switch, NEMA 4X, IP66 Outdoor with Disconnect Switch, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Contro
$1,223.90$1,223.90 -
Invertek
ODV-3-621500-3F1N-MN
VFD, 50hp, 150A, 200-240V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units (Free Non-Expedited LTL Freig
$6,947.95$6,947.95 -
Available Now!
Available Now!Invertek
OPT-2-USB485-OBUS
Optitools Programming Interface, USB to RJ45 Isolated Cord Connection, 1M
$311.52$311.52 -
Available Now!
Available Now!Invertek
ODE-3-440300-3F4B
VFD, 20hp, 30A, 380-480V, 3 Phase Input/Output, Keypad, Potentiometer, Disconnect Switch, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$2,539.68$2,539.68
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 3-year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

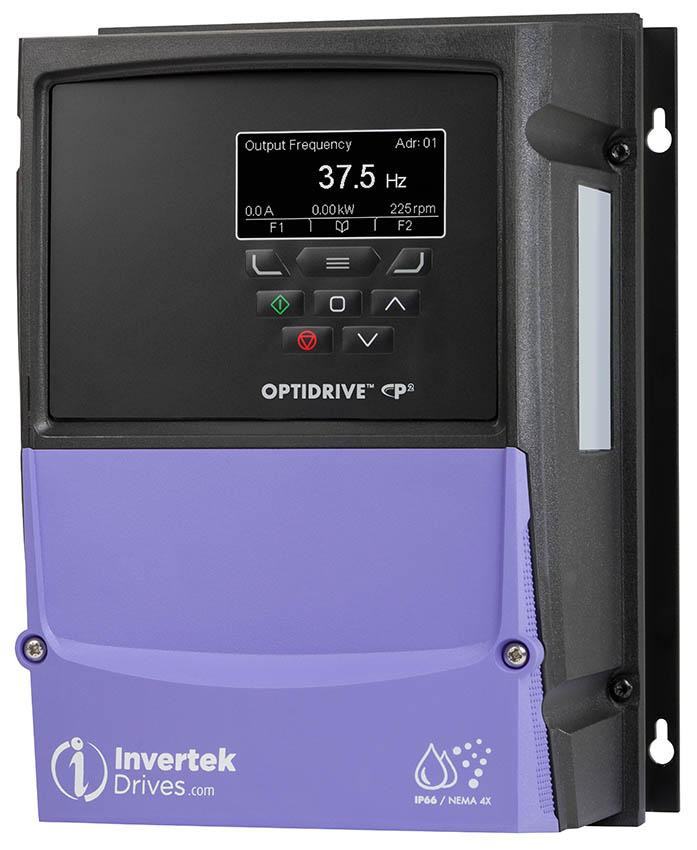

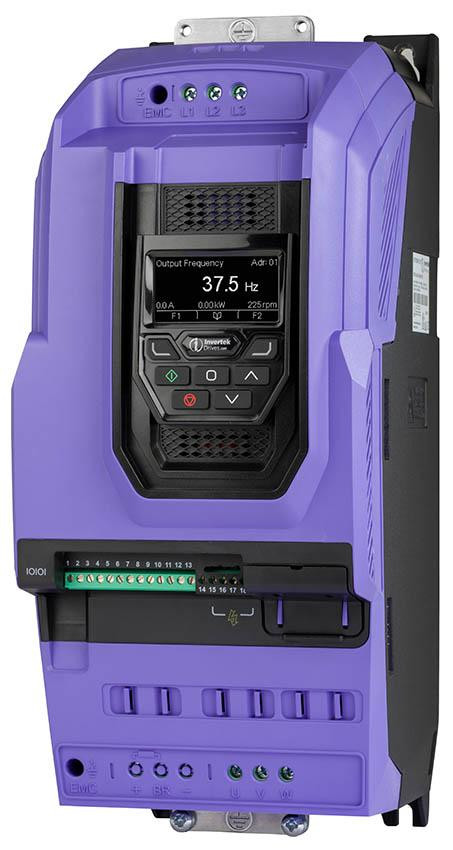

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
OptiPass: Bypass for Fan & Pump Control
- Available from 1 to 175hp in 200 to 480V models
- 3 Phase Input/Output
- BACnet built-in standard
- Reliable VFD and DOL control
- Low harmonic design - EN 61000-3-12 compliant
- Optional electronic bypass feature assures optimal time under VFD control with no need to manually change to bypass
- Shop the OptiPass Bypass drive now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
