Invertek
ODV-3-260031-301A-MN
VFD, 2hp, 3.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT
$1,052.63$1,052.63 -
Invertek
ODV-3-460340-301N-MN
VFD, 30hp, 34A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT Display (-MN)
$2,913.14$2,913.14 -
Invertek
ODV-3-260031-301E-MN
VFD, 2hp, 3.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, Disconnect Switch, NEMA 4X, IP66 Outdoor with Disconnect Switch, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller
$1,101.07$1,101.07 -
Invertek
ODV-3-460340-3012-MN
VFD, 30hp, 34A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT Display (-MN)
$2,924.75$2,924.75 -
Invertek
ODV-3-260031-3012-MN
VFD, 2hp, 3.1A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT Display (-MN)
$736.23$736.23 -
Invertek
ODV-3-460280-301N-MN
VFD, 25hp, 28A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT Display (-MN)
$2,688.09$2,688.09 -
Invertek
ODV-3-260021-301A-MN
VFD, 1hp, 2.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT
$974.92$974.92 -
Invertek
ODV-3-260021-301E-MN
VFD, 1hp, 2.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, Disconnect Switch, NEMA 4X, IP66 Outdoor with Disconnect Switch, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller
$1,025.38$1,025.38 -
Invertek
ODV-3-460280-3012-MN
VFD, 25hp, 28A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT Display (-MN)
$2,699.69$2,699.69 -
Invertek
ODP-2-22010-1HF4B-MN
VFD, 1hp, 0.75kW, 4.3 Amp (4.3A), 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, Potentiometer, Disconnect Switch, EMC Filter, NEMA 4X, T661:T757, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control
$821.01$821.01 -
Invertek
ODV-3-460220-301N-MN
VFD, 20hp, 22A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT Display (-MN)
$2,438.30$2,438.30 -
Invertek
ODV-3-260021-3012-MN
VFD, 1hp, 2.1A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes Latest TFT Display (-MN)
$683.75$683.75
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 3-year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
OptiPass: Bypass for Fan & Pump Control
- Available from 1 to 175hp in 200 to 480V models
- 3 Phase Input/Output
- BACnet built-in standard
- Reliable VFD and DOL control
- Low harmonic design - EN 61000-3-12 compliant
- Optional electronic bypass feature assures optimal time under VFD control with no need to manually change to bypass
- Shop the OptiPass Bypass drive now

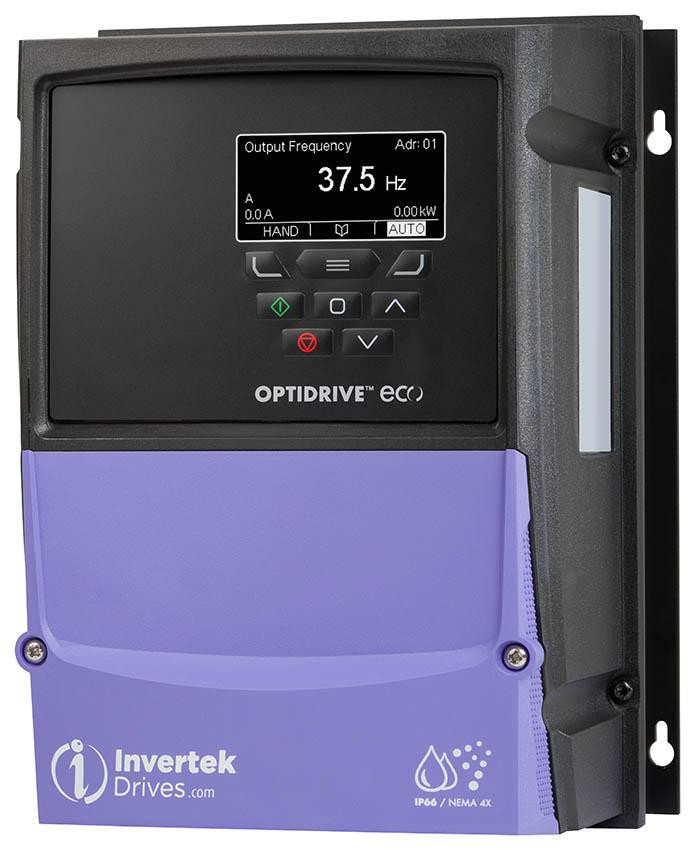

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
