LS Electric
LSLV0450SP100-4CEND

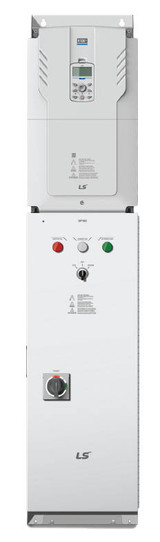

VFD, 60hp, 91 Amp (91A) ND (VT) / 50hp, 67 Amp (67A) HD (CT), Built-in DC Reactor, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 4: 13.27 x 57.48 x 13.53" (WHD), SP100 Bypass
$7,354.20
LSLV0370SP100-4CEND
Alt: 6737003700
$6,489.00
VFD, 50hp, 75 Amp (75A) ND (VT) / 40hp, 55 Amp (55A) HD (CT), Built-in DC Reactor, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 4: 13.27 x 57.48 x 13.53" (WHD), SP100 Bypass
- Weight:
- 158.73 LBS
- Minimum Purchase:
- 1 unit
Description
The LS SP100 Bypass was designed for HVAC applications!
Available in 200V/3 phase input from 7.5 to 40hp and in 400V/3 phase in put from 7.5 to 75hp.
Features of the SP100 series:
- 3 contactor bypass
- HAND/OFF/AUTO LCD keypad
- Compact, NEMA 1
- Built-in DC reactor standard
- Easy wiring and installation
- Auto bypass function
- Motor OL trip detection
- Built-in Modbus RTU, BACnet, MS/TP
- KEB, Kinetic Energy Buffering
- Built-in five relay outputs
- Dualport Ethernet/IP, Modbus TCP, BACnet/IP, Lonworks (optional)
This is the ideal VFD packaged solution for variable torque fan and pump applications!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
LS Electric
LSLV0550SP100-4CEND
VFD, 75hp, 107 Amp (107A) ND (VT) / 60hp, 81 Amp (81A) HD (CT), Built-in DC Reactor, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 4: 13.27 x 57.48 x 13.53" (WHD), SP100 Bypass
$9,430.68
