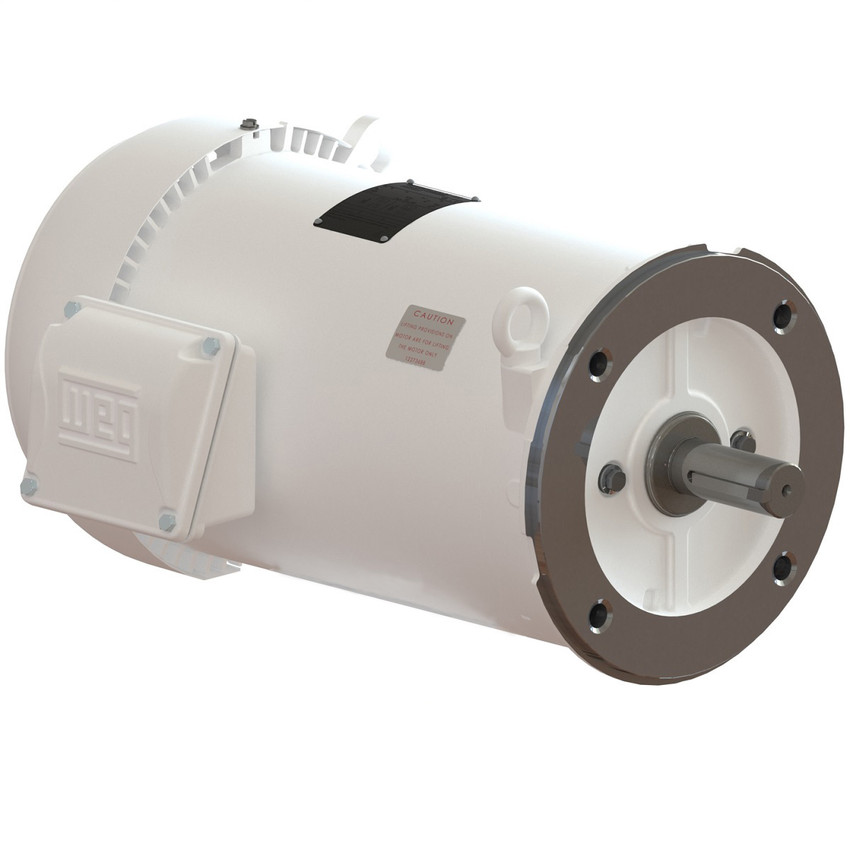

01018ET3EHWR215TC-S

The WEG Hydrowash series was designed for applications where there is a constant need for hygiene and cleanliness of the environment through high pressure water jets and/or chemical products.

This is a general purpose, 3 phase wash down duty motor!

Washdown motors are applied in food, beverage and pharmaceutical industries.

Standard Features:

• Output: 1/2 up to 25 HP
• Frames: 56 up to 254/6T
• Number of poles: 2 up to 6
• Certification CSA/UL
• Efficiency: NEMA Standard and NEMA Premium
• Voltage: Frames 56 and 145T - 208-230/460 V with 9 leads Frames 182/4T and 213/5T - 208-230/460//190-220/380-415 V with 9 leads Frames 254/6T - 208-230/460//190-220/380-415 V with 12 leads
• Service factor: 1.15
• Mounting: F-1
• Insulation class “F” (ΔT 80 K)
• Degree of protection: IP56
• Shaft material: Stainless Steel (AISI 304)
• Bearing type: Shielded (2RS)
• Permatex on joints for frames 182/4T and above
• Viton O’Ring on joints for frames 56 and 145T
• Color: Porcelain White - Munsell N 9.5
• Coating NOBAC® for frames 180 and above
• Internal painting: Tropicalized (Epoxy for frames 180 and above)
• Breather on non-drive end shield
• Vibration: Grade A
• Drive end bearing seal: Frames 56 and 145T - Oil seal stainless steel spring + slinger (stainless steel) Frames from 182/4T and above - Oil seal stainless steel spring + slinger (stainless steel)
• Non drive end bearing seal: Frames 56 and 145T - Oil seal stainless steel spring Frames from 182/4T and above - Oil seal stainless steel • Type of grease: Mobil Polyrex EM
• Fan material: plastic
• Aluminum flanges
• Terminal box material: Aluminum
• External screws and key: Stainless Steel
