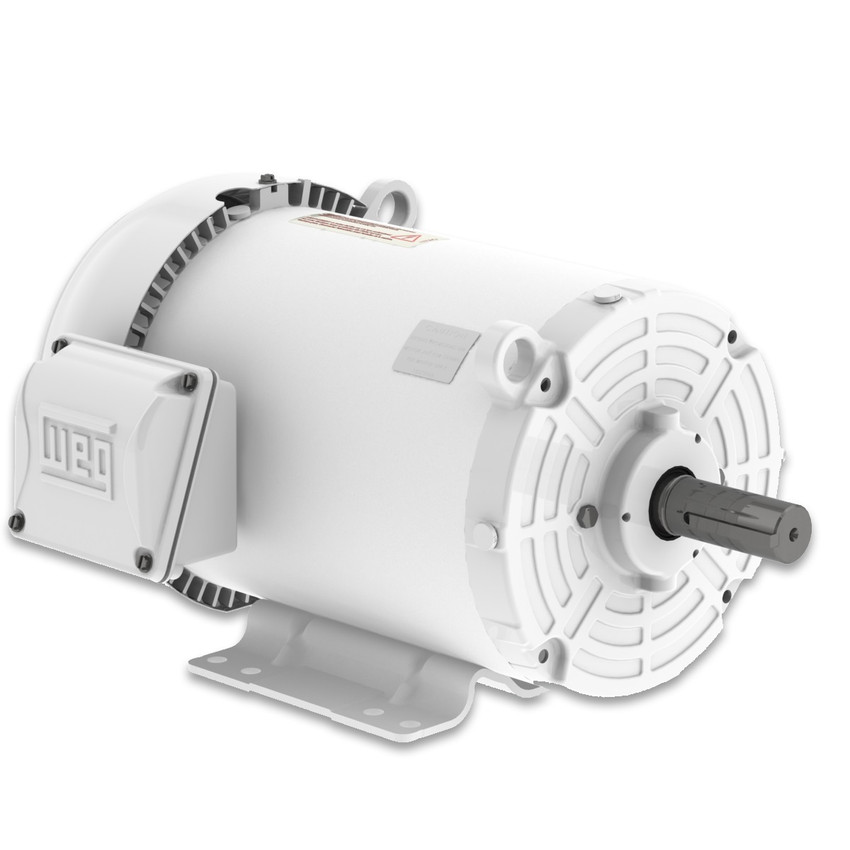

Motor, 7.5hp, 1800rpm, 4-Pole, Three Phase, 230/460//190-220/380-415V, 60//50Hz, 213/5T Frame, TEFC, Wash Down HydroWash NEMA Premium Efficiency White Epoxy Rolled Steel, Footed, No Flange, F-1 Mounting, Left Position Terminal Box, IP56
SKU:
00718ET3EHW213T-S
Weight:
131.60 LBS
Minimum Purchase:
1 unit
General purpose wash down duty motor, ideal for high pressure water or chemicals!
The WEG Hydrowash series was designed for applications where there is a constant need for hygiene and cleanliness of the environment through high pressure water jets and/or chemical products.
This is a general purpose, 3 phase wash down duty motor!
Washdown motors are applied in food, beverage and pharmaceutical industries.
Standard Features:
Output: 1/2 up to 25 HP
Frames: 56 up to 254/6T
Number of poles: 2 up to 6
Certification CSA/UL
Efficiency: NEMA Standard and NEMA Premium
Voltage: Frames 56 and 145T - 208-230/460 V with 9 leads Frames 182/4T and 213/5T - 208-230/460//190-220/380-415 V with 9 leads Frames 254/6T - 208-230/460//190-220/380-415 V with 12 leads
Service factor: 1.15
Mounting: F-1
Insulation class “F” (ΔT 80 K)
Degree of protection: IP56
Shaft material: Stainless Steel (AISI 304)
Bearing type: Shielded (2RS)
Permatex on joints for frames 182/4T and above
Viton O’Ring on joints for frames 56 and 145T
Color: Porcelain White - Munsell N 9.5
Coating NOBAC® for frames 180 and above
Internal painting: Tropicalized (Epoxy for frames 180 and above)
Breather on non-drive end shield
Vibration: Grade A
Drive end bearing seal: Frames 56 and 145T - Oil seal stainless steel spring + slinger (stainless steel) Frames from 182/4T and above - Oil seal stainless steel spring + slinger (stainless steel)
Non drive end bearing seal: Frames 56 and 145T - Oil seal stainless steel spring Frames from 182/4T and above - Oil seal stainless steel • Type of grease: Mobil Polyrex EM
