Novus
-

81500G0210

Alternate Part Number:
N1500-G RS485
$444.00
In stock
2 Available

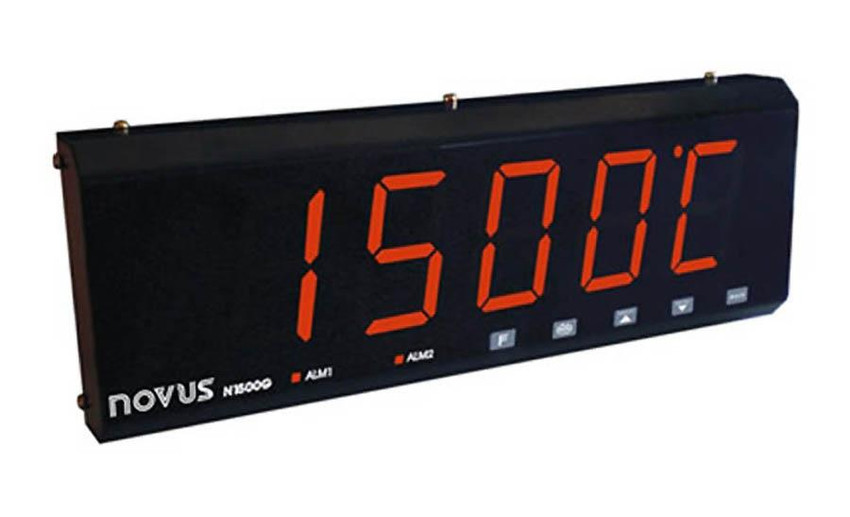

Universal Indicator, 56mm Display, 310x110x37mm, Indicators

This is a universal indicator from Novus: The N1500G series offers:

  • Accepts termocouples J, K, T, E, N, R, S, B; Pt100, 4-20 mA, 0-50 mV and 0-5 Vdc
  • Programmable range from -1999 to +9999 with adjustable filter Input sampling: up to 20 per second
  • Alarms: two 3 A SPST relays Functions: LO, HI, differential, diff. LO, diff. HI and sensor break
  • HOLD, PEAK, MAX and MIN function
  • Remote tare zero or via keyboard
  • 24 Vdc output for remote transmitters
  • Power: 100-240 Vac/dc or 24 Vdc/ac
  • Dimensions: 310 x 110 x 37 mm O
  • ptions Process variable retransmission, RS485 MODBUS digital communication, 10 Vdc output for load cells
More Information
Part Number 81500G0210
SKU 81500G0210
Alternate Part Number N1500-G RS485
Manufacturer Novus
Meter Type Digital Indicators
Voltage 24V AC/DC, 100-240VAC
Analog/Digital Digital
Amp Rating See Spec
Availability Please Contact Us
Weight - lbs. 0.500000
Base Unit of Measure Each
Product Series See Specs

Features Include:

  • Accepts termocouples J, K, T, E, N, R, S, B; Pt100, 4-20 mA, 0-50 mV and 0-5 Vdc
  • Programmable range from -1999 to +9999 with adjustable filter
  • Input sampling: up to 20 per second
  • Alarms: two 3 A SPST relays
  • Functions: LO, HI, differential, diff. LO, diff. HI and sensor break
  • HOLD, PEAK, MAX and MIN function
  • Remote tare zero or via keyboard
  • 24 Vdc output for remote transmitters
  • Power: 100-240 Vac/dc or 24 Vdc/ac
  • Dimensions: 310 x 110 x 37 mm

Options

  • Process variable retransmission
  • RS485 MODBUS digital communication
  • 10 Vdc output for load cells
  • Digital input: hold, tare zero or reset
