Weg
-

SSW900F0950T5E3B

Alternate Part Number:
15825445, Recommended Replacement for SSW060950T2257ESH1Z
$16,487.04
In stock
Soft Starter, 3 Phase, 950 Amp, 230/460/575VAC, 400/800/1050hp, Frame F: 29.9H x 29.9W x 12.4D”, Protected Chassis Encl., IP00. (The New SSW900 Soft Starters are not drop in replacements for their counterpart SSW06 Soft Starters. Please rev
More Information

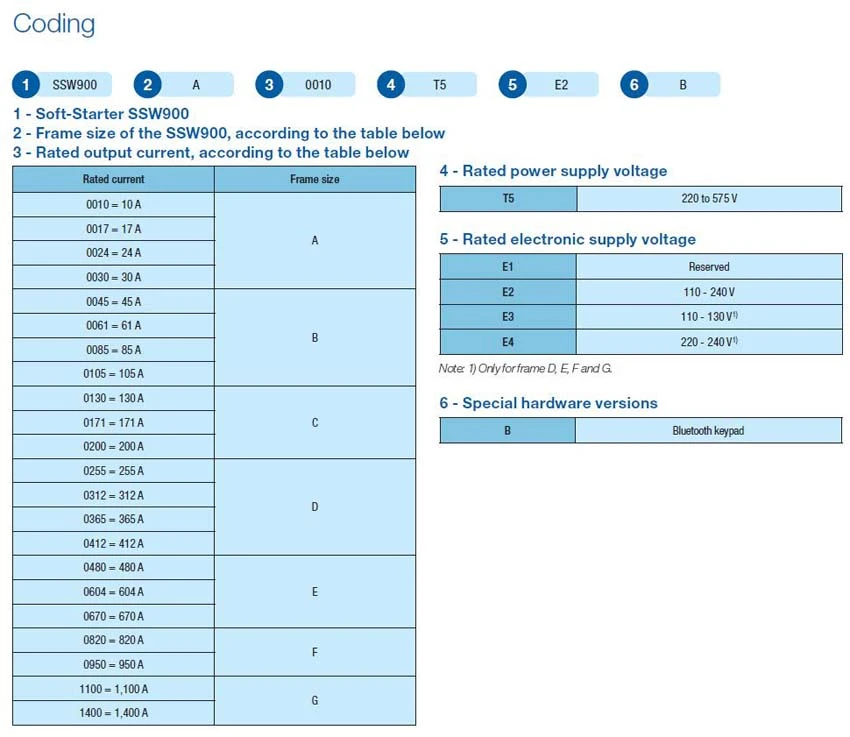

Part Number SSW900F0950T5E3B
SKU SSW900F0950T5E3B
Alternate Part Number 15825445, Recommended Replacement for SSW060950T2257ESH1Z
Weight - lbs. 260.500000
Base Unit of Measure Each
Horsepower See Spec
Voltage 220 to 575VAC
Warranty See Spec
Phase Three Phase
Options Keypad
Ratings IP00
Product Series SSW900 Series
Amp Rating See Spec
Availability Please Contact Us
Manufacturer Weg

Features Include:

  • Rated current: 950 A
  • Power supply: 220-575 V
  • Frequency: 50/60Hz
  • Number of controlled phases: 3 phases
  • Frame: F
  • Height: 760 mm / 29.9 in
  • Width: 464 mm / 18.3 in
  • Depth: 316 mm / 12.4 in
  • Built-in rated (AC1) bypass contactors for all models
  • Conformal coated circuit boards
  • Detachable Graphic HMI with USB port, with built-in Bluetooth and copy function
  • Oriented start-up and online help
  • Real time clock with event log
  • 2 independent slots to connect plug-in modules
  • Voltage ramp, Current Limit, Pump Control, Torque control, Current Ramp start modes
  • Inputs and outputs with programmable functions (5 DIs, 3 ROs, 1 AO & 1 Motor PTC Input as standard)
  • Communication Options: RS-485 (Modbus RTU), CANopen, DeviceNet, Profibus DP, Ethernet/IP, Modbus TCP/IP,
  • Profinet IO
  • SoftPLC Built in
  • Integral motor thermal protection
2024-02-29 06:05:26

Technical Information:

Options & Accessories Technical Data:
