Weg
-

SSW070365T5SH1Z

Alternate Part Number:
11043368, This Replaced SSW070365T5SZ (11250207)
$3,164.07
In stock

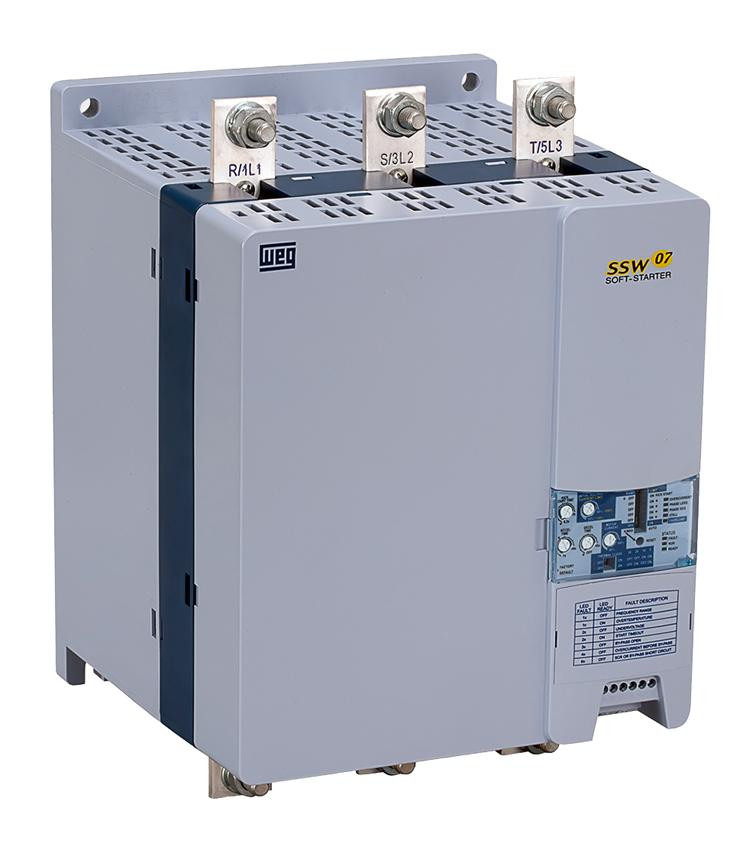

Soft Starter, 365A: 150hp/230V, 300hp/460V, 350hp/575V, 3 Phase, 13.0 x 9.0 x 9.6" Frame Size 4, IP00, Built-In - Internal AC-1 Bypass, Control Voltage: 94-264VAC, Internal Fan runs on 120VAC, Series SSW07
More Information
Part Number SSW070365T5SH1Z
SKU SSW070365T5SH1Z
Alternate Part Number 11043368, This Replaced SSW070365T5SZ (11250207)
Weight - lbs. 30.000000
Base Unit of Measure Each
Horsepower See Spec
Voltage 220 to 575VAC
Warranty See Spec
Phase Single Phase
Options No Special Options
Ratings IP00
Product Series SSW07
Amp Rating 365 Amp
Availability Please Contact Us
Manufacturer Weg

Features Include:

  • Rated current: 365 A
  • Power supply: 220-575 V
  • Protection Rating: IP00
  • Frame Size:  4
  • Torque control No
  • Direct on line start Programmable via optional
  • Product certification UL, CE, CS, IRAM and C-TICK
  • Parameterization via software Superdrive G2
  • Controls acceleration and deceleration of 3 phase induction motors by controlling the voltage applied to the motor
  • Includes DSP - digital signal processor
  • Reduce stress on components during start-up
  • Kick start function for starting high breakaway torque loads
  • Built-in bypass provides size reduction and energy savings
  • If using external control signal you will need a keypad - either HMI-LOCAL-SSW07 or HMI-REMOTE-SSW07, to program the required digital inputs
