Weg
-
SSW070061T5SZ
Alternate Part Number:
10194174 or 10233145
$1,004.06
In stock
1 Available
Soft Starter, 61A: 25hp/230V, 40/50hp/460V, 60hp/575V, 3 Phase, 8.2 x 5.6 x 8" Frame Size 2, IP20, Built-In - Internal AC-1 Bypass, Control Voltage: 94-264VAC, Series SSW07
| Part Number | SSW070061T5SZ |
|---|---|
| SKU | SSW070061T5SZ |
| Alternate Part Number | 10194174 or 10233145 |
| Weight - lbs. | 8.500000 |
| Base Unit of Measure | Each |
| Horsepower | 25 hp |
| Voltage | 220 to 575VAC |
| Warranty | 18 Months |
| Phase | Three Phase |
| Options | Built-In Bypass |
| Ratings | See Spec |
| Product Series | SSW07 |
| Amp Rating | 61 Amp |
| Availability | Standard Stock |
| Manufacturer | Weg |
Weg SSW07 Soft Starters:
- 220 to 575VAC universal voltage
- 17 to 85 amp is rated IP20
- 130 to 200 amp is rated IP00
- Easy to use
- Controls acceleration and deceleration of 3 phase induction motors by controlling the voltage applied to the motor
- Includes DSP - digital signal processor
- Reduce stress on components during start-up
- Kick start function for starting high breakaway torque loads
- Built-in bypass provides size reduction and energy savings

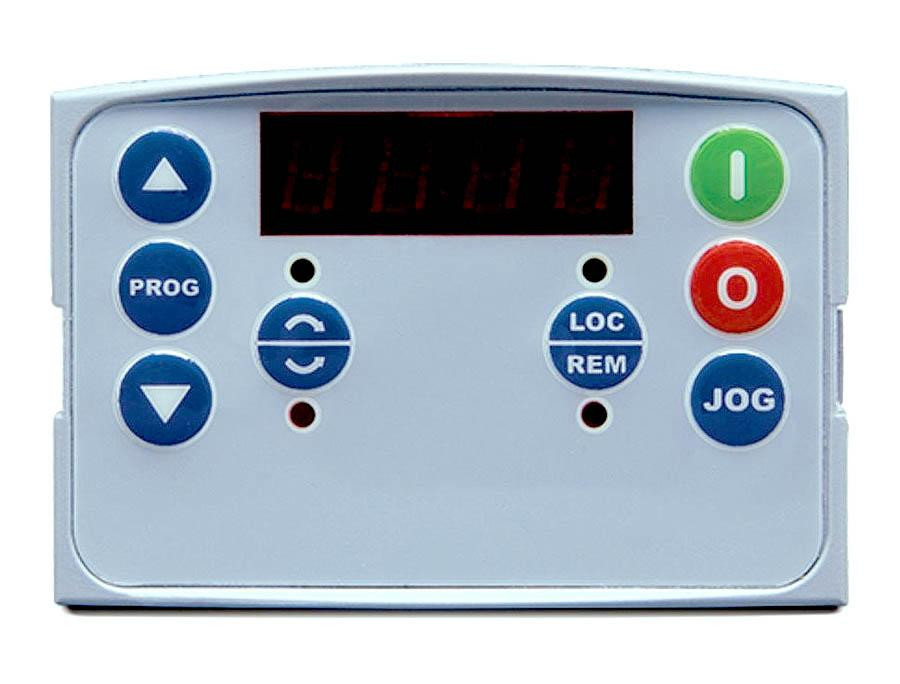

- If using external control signal you will need a keypad - either HMI-LOCAL-SSW07 or HMI-REMOTE-SSW07, to program the required digital inputs
2023-04-11 22:18:44
Need More Information?
- Weg SSW07 Soft Starter Catalog
- Weg SSW07 Soft Starter Quick Start Guide
- Weg SSW07 Soft Starter User Manual
- Weg SSW07/08 Soft Starter Serial Communication Manual
- Weg SSW07 Soft Starter Programming Manual
- Weg Soft Starter General Training Guide
- WEG LV Variable Frequency Drives and Soft Starters 2020 Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
