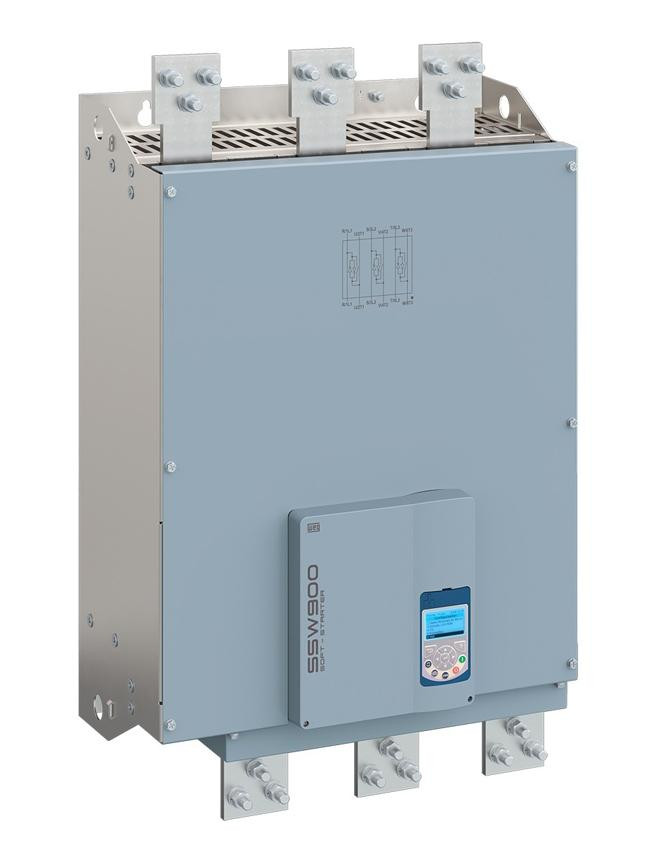

SSW900G1400T6E3B
SSW900G1400T6E3B
SSW900G1400T6E3B
SSW900G1400T6E3B
Weg

SSW900G1400T6E3B

Alt: 15939740, Recommended Replacement for SSW061400T5769ESH2Z

$27,595.58

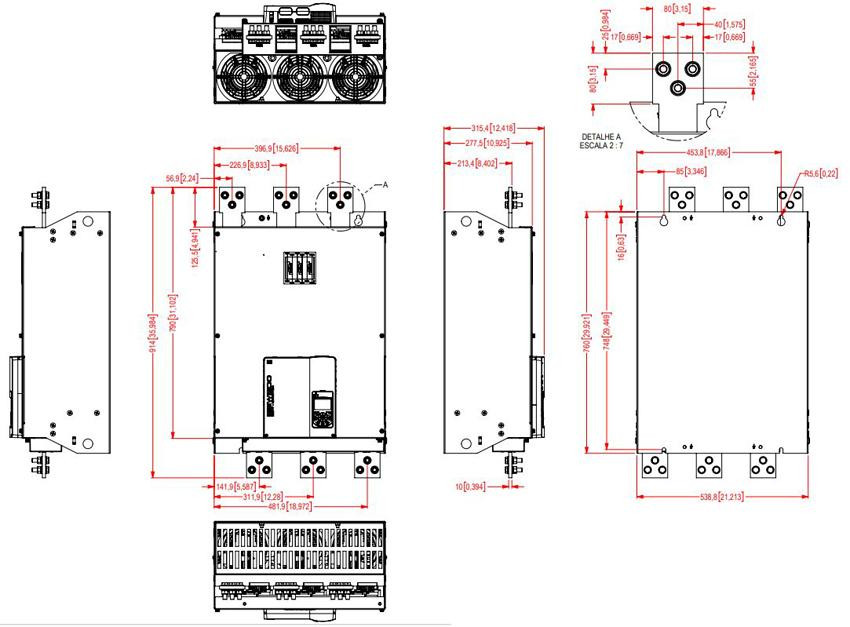

Soft Starter, 3 Phase, 1400 Amp, 690V, 1700hp, Frame G: 36.0H x 36.0W x 12.4D", Protected Chassis Enclosure, IP00 (Please review and verify specifications for your application.)

Minimum Purchase:
1 unit
Adding to cart… The item has been added
SSW900G1400T6E3B
SSW900G1400T6E3B
SSW900G1400T6E3B
SSW900G1400T6E3B
SSW900G1400T6E3B
SSW900G1400T6E3B
Description

Features Include:

  • Rated current: 1400 A
  • Power supply: 400-690 V
  • Frequency: 50/60Hz
  • Number of controlled phases: 3 phases
  • Frame: G
  • Height: 914 mm / 36.0 in
  • Width: 539 mm / 21.2 in
  • Depth: 316 mm / 12.4 in
  • Built-in rated (AC1) bypass contactors for all models
  • Conformal coated circuit boards
  • Detachable Graphic HMI with USB port, with built-in Bluetooth and copy function
  • Oriented start-up and online help
  • Real time clock with event log
  • 2 independent slots to connect plug-in modules
  • Voltage ramp, Current Limit, Pump Control, Torque control, Current Ramp start modes
  • Inputs and outputs with programmable functions (5 DIs, 3 ROs, 1 AO & 1 Motor PTC Input as standard)
  • Communication Options: RS-485 (Modbus RTU), CANopen, DeviceNet, Profibus DP, Ethernet/IP, Modbus TCP/IP,
  • Profinet IO
  • SoftPLC Built in
  • Integral motor thermal protection

Technical Information:

Options & Accessories Technical Data:

Accessories
!
✓
