Alternate Part Number:
Combination Soft Starter
In stock

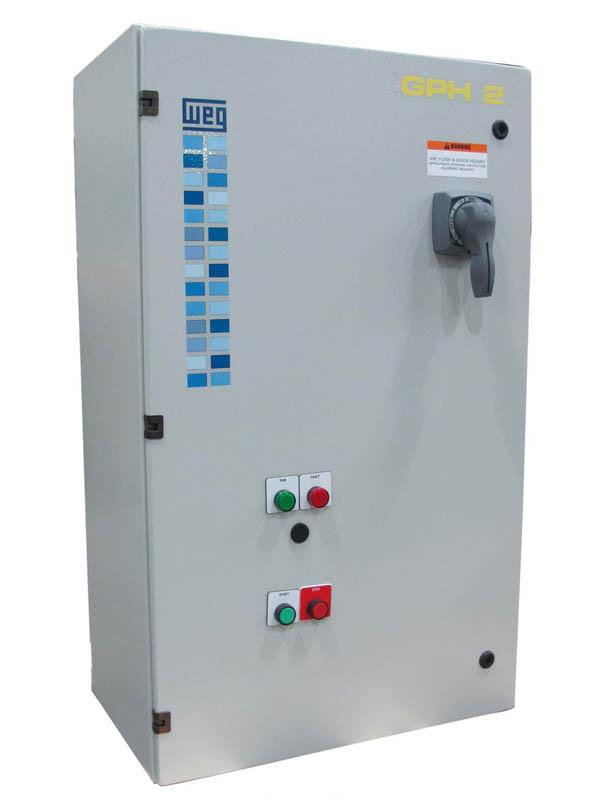

Soft Starter, 15hp, 45A, 3 Phase, 200-240VAC, NEMA 4/12 Enclosure with Circuit Breaker, AC1 Bypass & Keypad on Door
Combination soft starter that only requires input power and output motor connections!

Product image is representative only, please verify specifications.

Looking for quick installation and easy start up?

Our WEG GPH2 is a combination soft starter that requires only input power and output motor connections!

Check individual models for these options:

  • AC3 by-pass contactor and DOL selector switch
  • Door mounted keypad
  • 575V AC supply
  • SUSE service entrance rated

The GPH2 is great for centrifugal pumps, screw compressors, centfigual fans, wood chippers, lathes, saws and conveyors.

Ideal when used with WEG motors!

More Information
Part Number GPH2015QC2001
SKU GPH2015QC2001
Alternate Part Number Combination Soft Starter
Weight - lbs. 150.000000
Base Unit of Measure Each
Horsepower 15 hp
Voltage 220/240VAC
Warranty 18 Months
Phase Three Phase
Options Built-In Bypass, For Centrifugal Pumps
Ratings NEMA 4 , NEMA 12
Product Series GPH2 Series
Amp Rating 45 Amp
Availability Please Contact Us
Manufacturer Weg

Features Include:

  • Rated for 300% for 30 seconds 4 x per hour
  • 5 - 500HP at 230V
  • 10 – 1200hp at 460V
  • Wall mounted enclosures for SSW07 (from 17 - 200Amps) NEMA12
  • Floor Mounted enclosure for SSW06 (from 255A – 800A) NEMA12

Standard Panel Includes:

  • Soft Starter:
    • SSW07 for GPH2 from 17 to 200A (all models with integrated AC1 by-pass)
    • SSW06 for GPH2 from 255 up to 800A (all models with integrated AC1 by-pass)
  • Circuit Breaker Through Door Disconnect
  • Control Power Transformer
  • Start/Stop pushbuttons

Optional Features:

  • AC3 by-pass contactor and with Soft Starters and DOL Selector Switch
  • Door mounted keypad
  • NEMA 3R Enclosure
  • NEMA 4 Enclosure
  • Rain/Sun Shield for Outdoor Installation
  • 575V


  • Centrifugal Pumps
  • Screw Compressors
  • Wood Chipper
  • Veneer Lathe
  • Saws
  • Conveyors
