Altech Corp.
-
38075
$71.25
In stock
3 Available

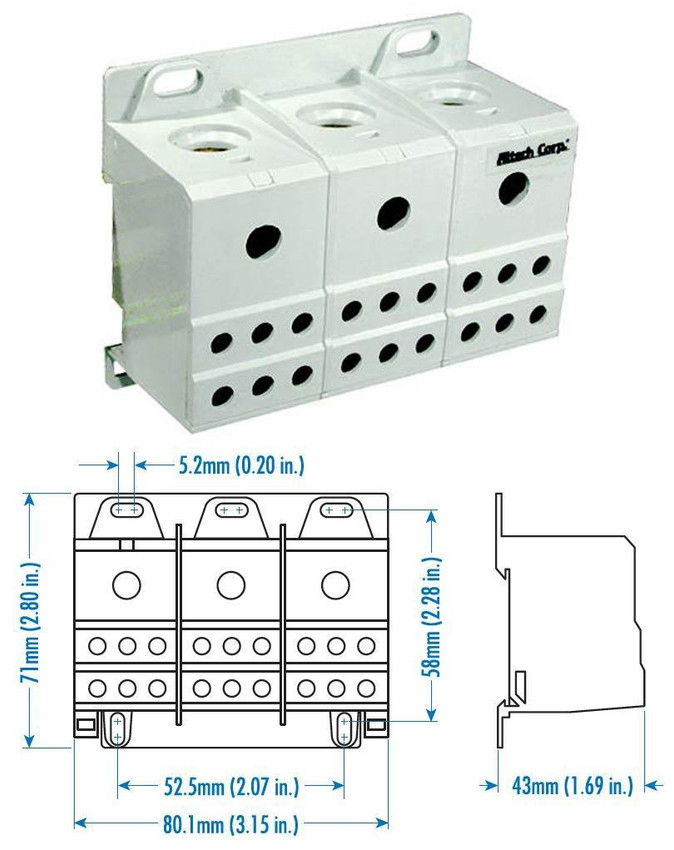

Power Distribution Block, 3 Phase, 115 Amp, 3-Pole, 8-2AWG, 600VAC, DIN or Panel Mount, IP20
Power Dist Blocks, Three Phase, 115A, 3 Pole, 8-2AWG, White
| Part Number | 38075 |
|---|---|
| SKU | 38075 |
| Amp Rating | 115 Amp |
| Phase | Three Phase |
| Ratings | IP20 Rated |
| Voltage | 600V |
| Manufacturer | Altech Corp. |
| Availability | Standard Stock |
| Weight - lbs. | 0.500000 |
| Base Unit of Measure | Each |
Features Include:
- Quick mounting and wiring
- IP20 Finger Safe
- DIN Rail or Panel Mount
- Blocks fit with other DIN Rail mountable modular devices
- Same compact size for both ratings
- No caps to open or remove
Material
- Housing: Polyamide
- Metal Body: Brass
UL Ratings Displayed (IEC Ratings available in resources)
Current Rating
- 115A
Voltage Rating
- 600V AC
Number of Inputs: 3x1
- Input Wire Range: 8-2 AWG
- Input Torque: 31lb.-in.
- Input Screw Type: Hex 4
Number of Outputs: 3x6
- Output Wire Range: 14-4 AWG
- Output Torque: 17.5lb.-in.
- Output Screw Type: Hex 3
