Altech Corp.
-

38049

$17.15
In stock
Power Distribution Block, One Phase, 80 Amp, Single Phase, 600VAC, DIN or Panel Mount, IP20

Our Altech one phase power distribution blocks are IP20 finger safe and can be DIN rail or panel mounted.

There are no caps to open or remove.

On two parts, 38041 and 38032, accessories can increase the number of outputs with only one input!

Marshall Wolf Automation is your authorized Altech distributor!

More Information
Part Number 38049
SKU 38049
Amp Rating 80 Amp
Phase Single Phase
Ratings IP20 Rated
Voltage 600V
Manufacturer Altech Corp.
Availability Please Contact Us
Weight - lbs. 0.500000
Base Unit of Measure Each

Features Include:

  • Quick mounting and wiring
  • IP20 Finger Safe
  • DIN Rail or Panel Mount

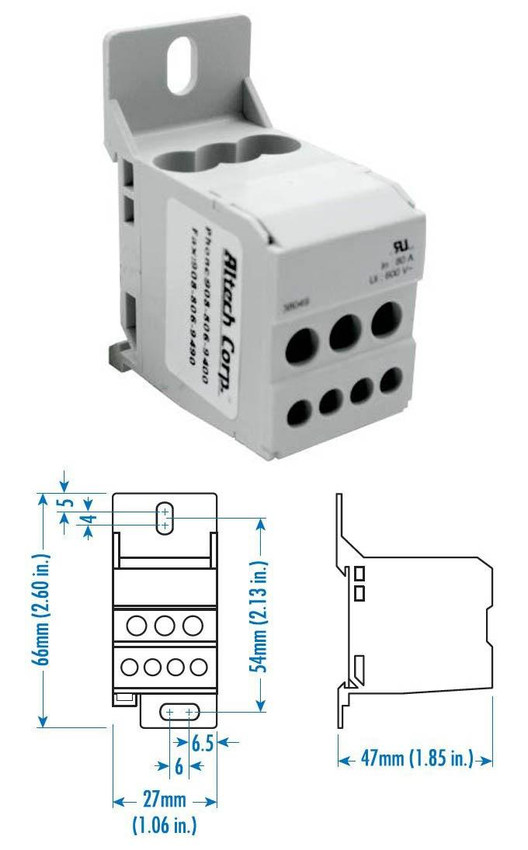

  • Blocks fit with other DIN Rail mountable modular devices (height 95mm, depth 44.5mm)
  • Accessories increase the number of outputs with only one input (applies only to 38041 and 38032)
  • No caps to open or remove

Material

  • Housing: Polyamide
  • Metal Body: Brass

UL Ratings Displayed (IEC Ratings available in resources)

Current Rating

  • 80A

Voltage Rating

  • 600V AC

Number of Inputs: 1

  • Input Wire Range: 8-4 AWG
  • Input Torque: 13.5lb.-in.
  • Input Screw Type: Pozi Drive 2

Number of Outputs: 6

  • Output Wire Range: (2x)8-4 AWG
  • Output Torque: 13.5lb.-in.
  • Output Wire Range: (4x)14-10 AWG
  • Output Torque: 7.2lb.-in.
  • Output Screw Type: Pozi Drive 2
