Altech Corp.
-

DB16

$12.94
In stock
Power Dist Blocks, One Phase, 80A, 1-Pole, 8-4AWG, Gray
Power Dist Blocks, One Phase, 80A, 1 Pole, 8-4AWG, Gray
More Information
Part Number DB16
SKU DB16
Amp Rating 80 Amp
Phase Single Phase
Ratings IP20 Rated
Voltage 600V
Manufacturer Altech Corp.
Availability Please Contact Us
Weight - lbs. 0.500000
Base Unit of Measure Each

Features Include:

  • Quick mounting and wiring
  • IP20 Finger Safe
  • DIN Rail or Panel Mount

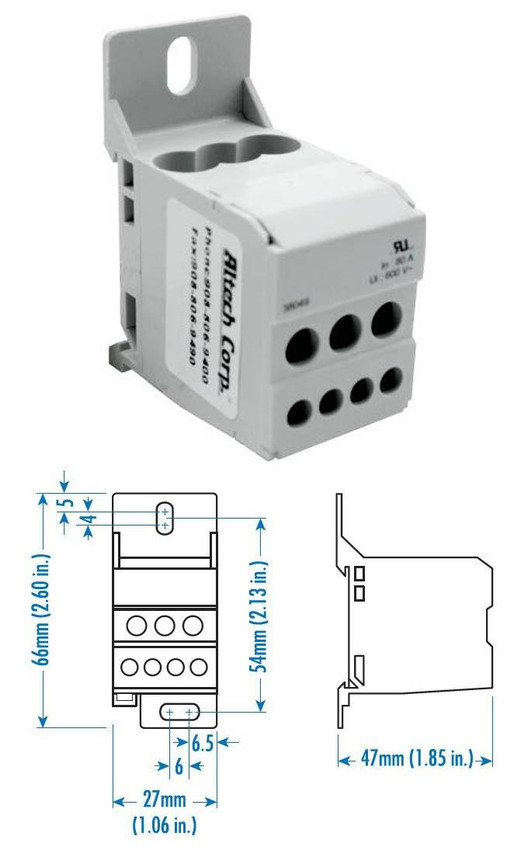

  • Blocks fit with other DIN Rail mountable modular devices (height 95mm, depth 44.5mm)
  • Accessories increase the number of outputs with only one input (applies only to 38041 and 38032)
  • No caps to open or remove

Material

  • Housing: Polyamide
  • Metal Body: Brass

UL Ratings Displayed (IEC Ratings available in resources)

Current Rating

  • 80A

Voltage Rating

  • 600V AC

Number of Inputs: 1

  • Input Wire Range: 8-4 AWG
  • Input Torque: 13.5lb.-in.
  • Input Screw Type: Pozi Drive 2

Number of Outputs: 6

  • Output Wire Range: (2x)8-4 AWG
  • Output Torque: 13.5lb.-in.

  • Output Wire Range: (4x)14-10 AWG
  • Output Torque: 7.2lb.-in.

  • Output Screw Type: Pozi Drive 2
