MSW 80 B-3

Alternate Part Number:
MSW 80 B3, 11898926
In stock
1 Available
Disconnect Switch, 80A, Base Mounting, 3-Pole, Mechanism Only (No Handle and No Shaft), MSW Series

WEG MSW Series UL508 Disconnect Switches

The MSW series was developed according to IEC 60947-3 and UL508. They are used for manually isolating or interrupting electrical circuits under load conditions. They are often used as a means for secondary lock-out / tag-out scenarios.

Available in 25, 40, 63 or 80 amp.

Standard Features

  • Suitable as Motor Disconnect
  • Two mounting options available; door mount or base mounting (by screws or DIN rail)
  • Two color options: Yellow cover with red handle or gray cover with black handle
  • Protection ratings:
    • IP65 protection rating for handles allowing up to three padlocks in “OFF” position
    • IP20 protection rating for internal terminals
    • Knock-outs for cable gland provides flexibility for cable entry/exit on the top, bottom, and rear of the box
  • UL File No. E172121
  • Accessories include additional pole, auxiliary contacts and terminal cover
  • Also available in enclosed versions; MSWB series
More Information
Part Number MSW 80 B-3
SKU MSW 80 B-3
Alternate Part Number MSW 80 B3, 11898926
Amp Rating 80 Amp
Material Plastic
Options No Special Options
Housing/Enclosure IP20
Product Series MSW Series
Ratings IP20 Rated
Poles 3 Pole
Manufacturer Weg
Availability Please Contact Us
Weight - lbs. 1.000000
Base Unit of Measure Each

Series Features Include:

  • Surface-mounted switch-disconnectors (base)

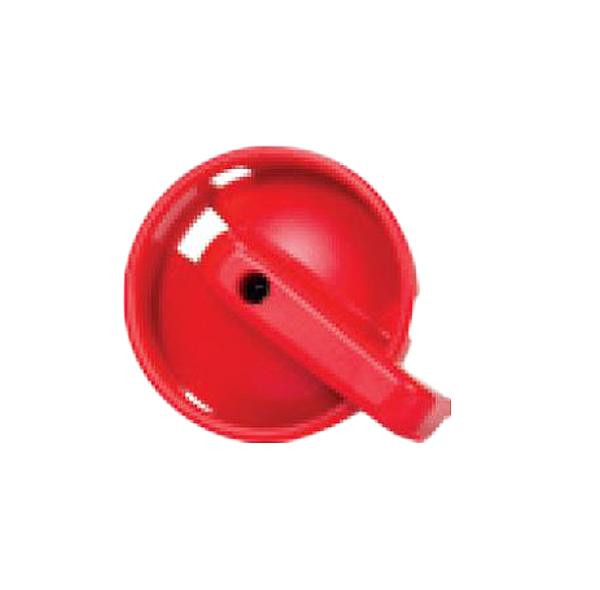

  • Two color options: yellow cover with red handle or gray cover with black handle
  • Locking in the OFF position with up to three padlocks
  • Knock-outs for cable gland: flexibility allowing cable entry/exit at the top, bottom and rear of the box
  • Robust and heat resistant enclosures

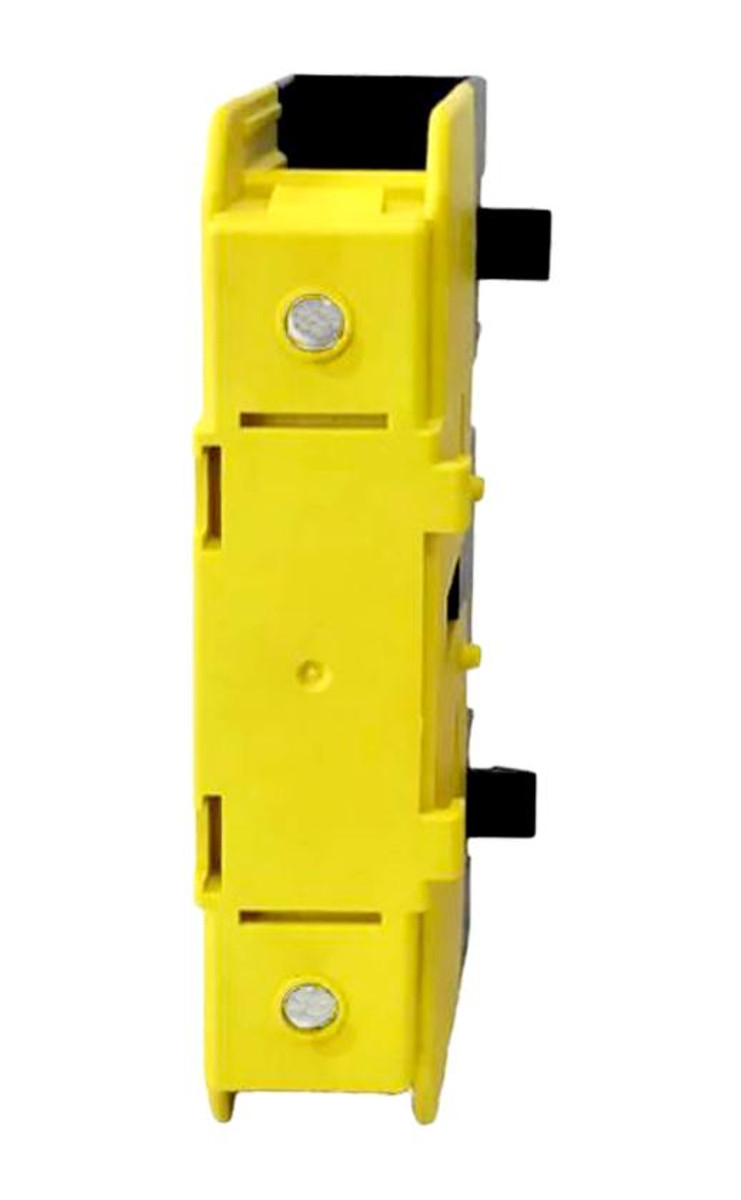

  • An additional pole can be installed (accessory item)
  • An auxiliary contact can be installed (accessory item)
