Carlo Gavazzi
-

DPA01CM44

$107.10
In stock
2 Available

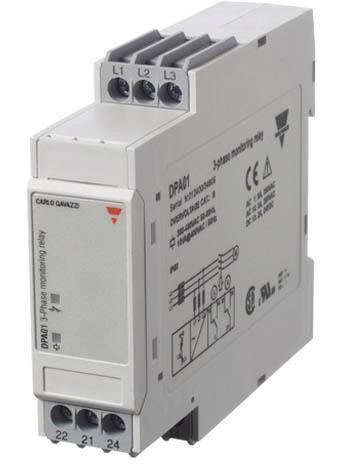

Monitoring Relay, 3-Phase, 208-480VAC, 8A, SPDT, DIN Rail Mount
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
Monitoring Relay, 3-Phase, 208-480VAC, 8A, SPDT, DIN Rail Mount
More Information
Part Number DPA01CM44
SKU DPA01CM44
Voltage 208 to 480VAC
Monitoring Type Phase Monitoring
Phase Three Phase
Poles SPDT
Amp Rating 8 Amp
Manufacturer Carlo Gavazzi
Availability Standard Stock
Weight - lbs. 0.250000
Base Unit of Measure Each

Features Include:

  • 3-phase monitoring relays for phase sequence and phase loss
  • Detect when all 3 phases are present and have the correct sequence
  • Measure their own power supply
  • Power supply range: 208 to 690 VAC (+10 -15%)
  • Output: 8 A SPDT relay or 8 A DPDT normally energized
  • For mounting on DIN-rail in accordance with DIN/EN 50 022 (DPA01) or plug-in module (PPA01)
  • 22.5 mm Euronorm housing (DPA01) or 36 mm plug-in module (PPA01)
  • LED indication for relay and power supply ON
