Carlo Gavazzi


In stock
1 Available
Monitoring Relay, 3-Phase, 208-480VAC, 5A, SPDT, 17.5mm DIN Rail Mount
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!

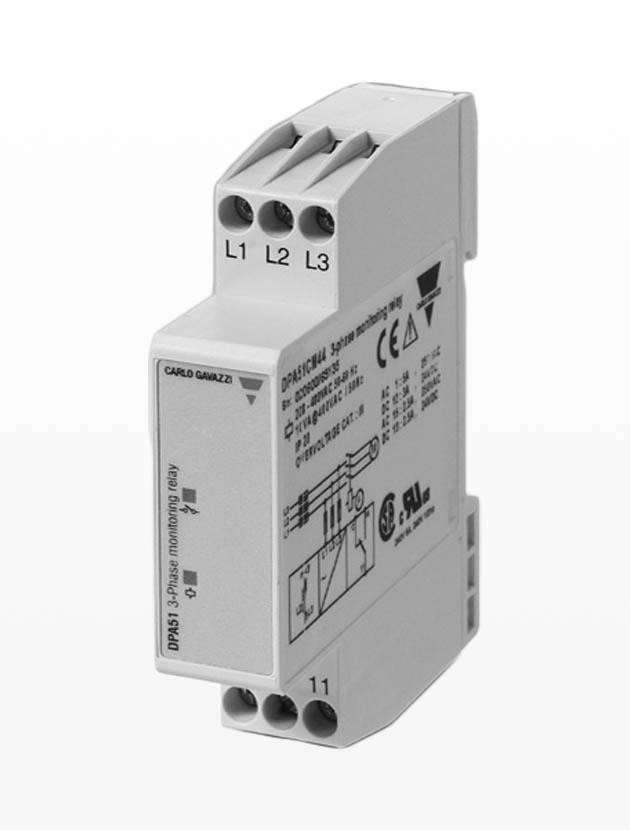

Monitoring Relay, 3-Phase, 208-480VAC, 5A, SPDT, 17.5mm DIN-Rail Mount, Phase Reversal/Loss & More.

More Information
Part Number DPA51CM44
Voltage 208 to 480VAC
Monitoring Type Phase Monitoring
Phase Three Phase
Poles SPDT
Amp Rating 5 Amp
Manufacturer Carlo Gavazzi
Availability Please Contact Us
Weight - lbs. 0.250000
Base Unit of Measure Each

Features Include:

  • 3-phase monitoring relay for phase sequence and phase loss
  • Detects when all phases are present and have the correct sequence
  • Measures its own power supply
  • Power supply range: 208 to 480 VAC (±15%)
  • Output: 5 A SPDT relay normally energized
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 17.5 mm DIN-rail housing (DIN 43880)
  • LED indication for relay and power supply ON
