ECH3010PPAT-1
ECH3010PPAT-1

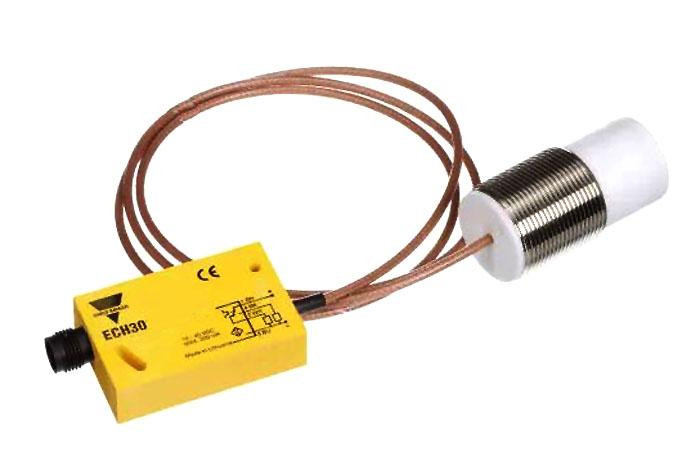

Product image is representative only, please verify specifications.

Carlo Gavazzi

ECH3010PPAT-1

$827.05

Capacitive Proximity Sensor, 30mm, High Temp, 10-40VDC, 4-15mm Range, PNP

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
ECH3010PPAT-1
ECH3010PPAT-1
Description
Capacitive Proximity Sensor, 30mm, High Temp, 10-40VDC, 4-15mm Range, PNP

Series Features Include:

  • For temperature applications, from -196°C to +180°C
  • Sensor diameter: M30, teflon and stainless steel
  • Adjustable sensing distance: 4 to 15 mm, factory set for 10 mm
  • Power supply: 10 to 40 VDC
  • Output: transistor NPN or PNP, make & break switching
  • Protection: Reverse polarity, short-circuit, transients
  • LED-indication for output ON
  • Separate amplifier and sensor
  • Plug connection
