Crossroads Industrial Services


Alternate Part Number:
801111315 JD-2 ORANGE
In stock
Air Switch, 801111315 - Orange Spring 5-35" w.c., 125-875 mm/w.c., AJ Antunes

Please note that effective June 21, 2017 Antunes Controls sold their pressure switch line to Crossroads Industrial Services.

Our compact, sensitive Antunes JD-2 switches are made of rugged die-cast aluminum and feature adjustable set point, set-point indication and visible on/off indicator.

The Antunes JD2 series is available in five range scales and give you accuracy and reliability.

The original Chicago Safety Products switch was called the Model D-1. The Model D-1 was a differential air pressure switch developed primarily for the industrial combustion market. The D-1 air switch was used to sense air-flow across a burner.

The first customer was Despatch Industries in Minneapolis Minnesota with an order for 100 switches. Following a process of continuous improvement, the second generation of this air-flow switch was soon introduced. This model was called the JD-2. The model was named as the second (2) generation of the differential switch (D). What does the J stand for? Always a strong family man, August Antunes used this opportunity to name this product for his children, Jim and Jane.

More Information
Part Number JD2 ORANGE
Alternate Part Number 801111315 JD-2 ORANGE
Product Series JD2 Air Switches
Availability Please Contact Us
Weight - lbs. 1.0000
Base Unit of Measure Each

Automatic reset

Available in Blue, Grey, Red, Purple or Orange springs

  • JD-2 Grey, .1-4" w.c. (801111302)
  • JD-2 Red, .1-24" w.c. (801111303)
  • JD-2 Blue, .07-1.7" w.c. (801111301)
  • JD-2 Purple, .1-10" w.c. (801111310)
  • JD-2 Orange, 5-35" w.c. (801111315)

Differential - Vacuum - Pressure

Max. pressure surge: 3 psi

Max. ambient temperature: 140°F/60°C

Min. ambient temperature: -40°F/-40°C

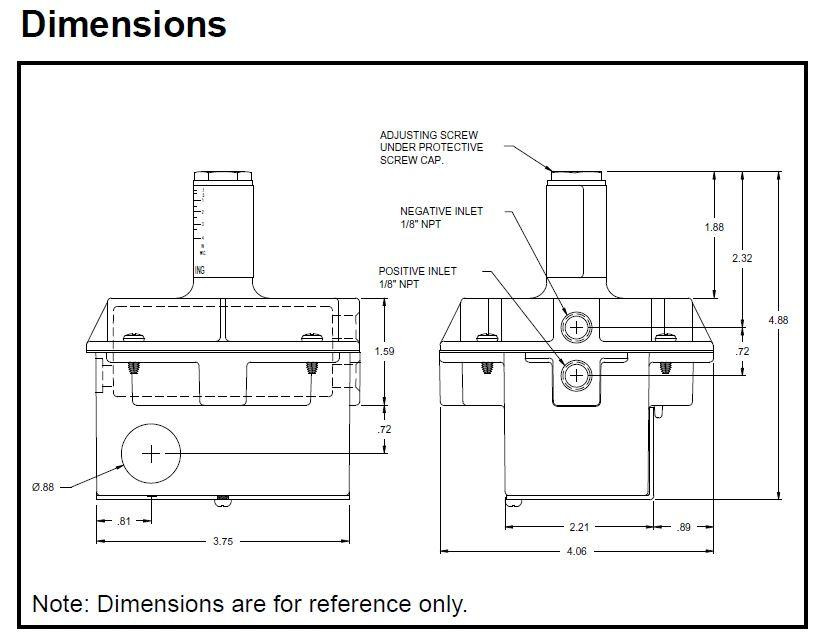

Dimensions: 4.02" diameter, 4"D x 5"H
