LSLV0015M100-1EOFNA

LSLV0015M100-1EOFNA

Alt: 66430011

$244.76

VFD, HD 2hp, 7.5A, 200-240 VAC, Single Phase, IP20, Meets UL 61800-5-1, 3 Phase Output, Keypad + Pot, EMC

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

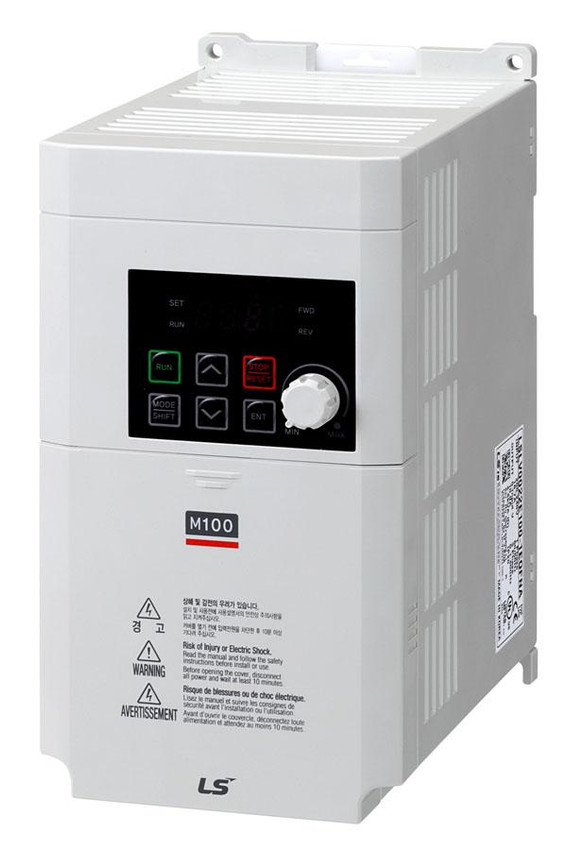

Our LS Electric M100 series is ideal for small motor applications! These single phase input/3 phase output drives are available in 200-240V or 115V.

  • DIN rail mount
  • Meets UL 60800-5-1
  • Built-in C2 EMC filter
  • Side by side installation
  • Easy connection with RJ45 port
  • IP20
  • 2 year warranty
  • Single phase input/3 phase output

Marshall Wolf Automation is an authorized stocking distributor for LS Electric.

Features Include:

  • Rated Current Input: 13.6 A
  • Input Frequency: 50~60Hz(±5%)
  • Rated Input Voltage: 1 phase 200-240Vac(-15% to +10%)
  • Rated Output Capacity: 3 kVA
  • Rated Output Current: 7.5 A
  • Rated Output Frequency: 0~400Hz
  • Rated Output Voltage: 3 phase 200-240V
  • Built-in C2 EMC Filter
  • New UL 61800-5-1 Design - Enhanced isolation circuit
  • Built-in DB unite: ≥ 1.5kW
  • Modbus in advanced I/O type
  • DIN-rail mountable
  • Side-by-side installation
  • Easy connection with RJ45 port
  • Modbus/Smart copier/Remote keypad/DriveView 9
