Available Now! P1-00620-HFUF
Available Now! (3 in stock)

P1-00620-HFUF

Alt: SJ-P1 Series

$1,640.16

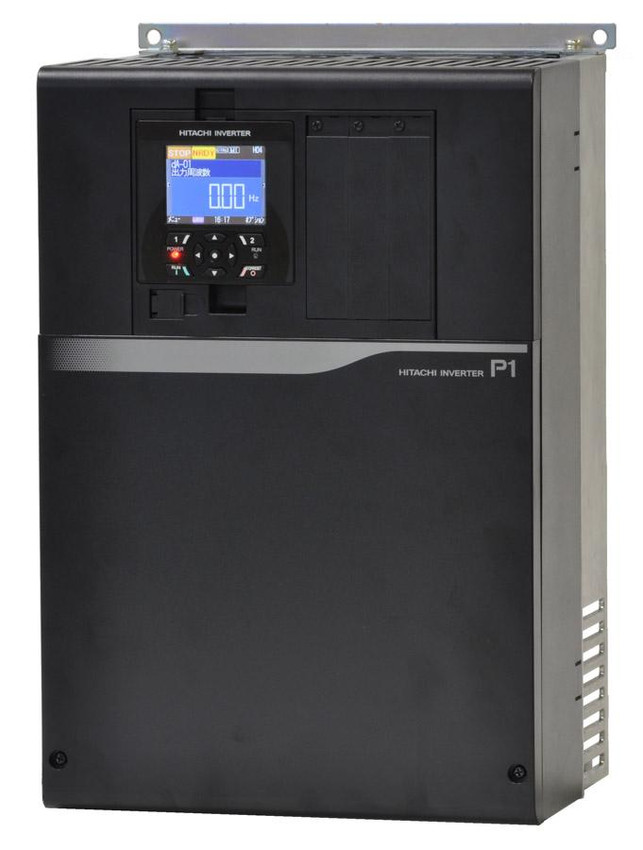

VFD, 30hp, Three Phase, 380-480V, 48/57/62 Amp, ND/LD/VLD, High Performance Vector Drive

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

The new SJ-P1 can easily handle heavy loads that require high starting torque at low speed.  This series is also great for high speed rotation applications because of a 590Hz maximum operating frequency.

  • VLD = very light load (110% 60 seconds, 120% 3 seconds)
  • LD = light load (120% 60 seconds, 150% 3 seconds)
  • ND = normal load (150% 60 seconds, 200% 3 seconds)

The built-in automatic speed adjustment reduces the risk of issues with trips during acceleration and deceleration. You can control both induction and permanent magnet motors and there are easily accessible slide-in cassettes to enhance integration and performance.

The SJ-P1 variable frequency drives are ideal for fans, pumps, hydraulic pumps, cranes, lifts, injection molding machines, milling machines and winders.

January 2018: The SJ-P1 has replaced the SJ700D series.

Series Features Include:

  • Heat sink designed for external mounting if required
  • RS-485 Modbus RTU standard
  • Energy saving function standard
  • Keypad /Terminal switching
  • Three-wire operation function
  • Standard LCD color operator
  • PID, Logic and time delay functions built in
  • Arithmetic operation and delay functions
  • Error codes in text
  • Analog input disconnection detect function
  • CE/UL/cUL/c-Tick approvals
  • 10 year MTBF life design
  • Loss of signal protection
  • Sink or Source input compatible
  • EzCOM for drive to drive master-less communications
  • PID Sleep mode function and loss of pressure function
  • PMAC motor compatible
