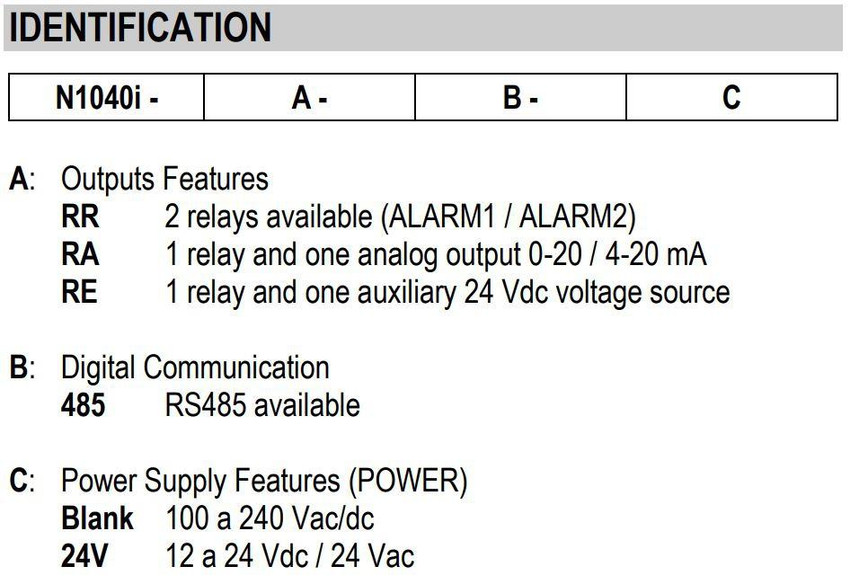

Alt: N1040i-RE USB RS485

$115.00

Universal Indicator, 1 Relay+24VDC Out, 48x48mm, Indicators

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Universal indicator, 1 Relay+24VDC Out, 48x48mm Indicators

Features Include:

  • Thermocouple inputs J, K, T, N, R, S, B, E, RTD Pt100 and linear 0-20 mA, 4-20 mA, 0-50 mV, 0-5 V e 0-10 V in one model
  • Input adjustable Offset allows small indication corrections
  • Analog input signal retransmission over 0-20 mA or 4-20 mA
  • Up to 2 programmable alarms outputs
  • Up to 2 relay outputs, SPDT and SPST-NO
  • Alarm Functions: minimum, maximum, differential, minimum differential, maximum differential and sensor break
  • Features Initial alarm blocking function
  • Flash alarm function alerts operator to condition while in alarm state
  • Sensor failure detection
  • Password parameters protection
  • Factory calibration parameters recovery
  • Universal switching power supply ensures high precision even under mains voltage oscilations
  • Optional auxiliary 24 Vdc power supply to connect field transmitters
  • Optional RS485 interface
  • Power Supply: - 100 to 240 Vac (±10 %), 50/60 Hz - 48 to 240 Vdc (±10 %)
  • Dimensions: 48 x 48 x 80 mm
  • Internal Resolution: 32767 levels (15 bits)
  • Display Resolution: 12000 levels (de -1999 to 9999)
  • Input reading rate: up 55 per second
  • Precision: - Thermocouples J, K, T, E: 0.25 % of the span +1ºC - Thermocouples N, R, S, B: 0.25 % of the span +3ºC - Pt100: 0.2 % of the span - 4-20 mA, 0-50 mV, 0-5 V, 0-10 V: 0.2 % of the span
  • Certifications: CE, UL
