Baumer
-
UNDK 20U6903/S35A
Alternate Part Number:
10158275
$699.00
In stock
4 Available

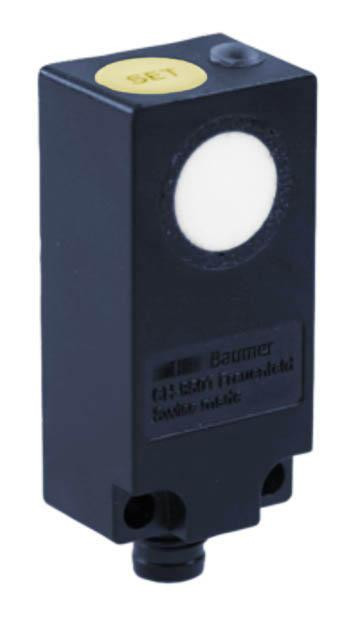

Ultrasonic Distance Sensor, 15-30VDC, IP67
Ultrasonic Distance Sensor, 15-30VDC, IP67
| Part Number | UNDK 20U6903/S35A |
|---|---|
| SKU | UNDK 20U6903/S35A |
| Alternate Part Number | 10158275 |
| Manufacturer | Baumer |
| Availability | Please Contact Us |
| Size | See Spec |
| Output | See Spec |
| Product Series | UNDK Series |
| Weight - lbs. | 0.500000 |
| Base Unit of Measure | Each |
Features Include:
- Scanning Range Sd: 100 - 1000 mm
- Repeat Accuracy: <0.5 mm
- Resolution: <0.3 mm
- Response Time ton: < 80 ms
- Voltage Supply Range +Vs: 15 - 30 VDC
- Current Consumption Max. (no load): 35 mA
- Output Circuit: Voltage Output
- Output Signal: 0 - 10 V / 10 - 0 V
- Output Current: <20 mA
- Connector M8
- Operating Temperature: -10 - +60 °C
- Protection Rating: IP 67
