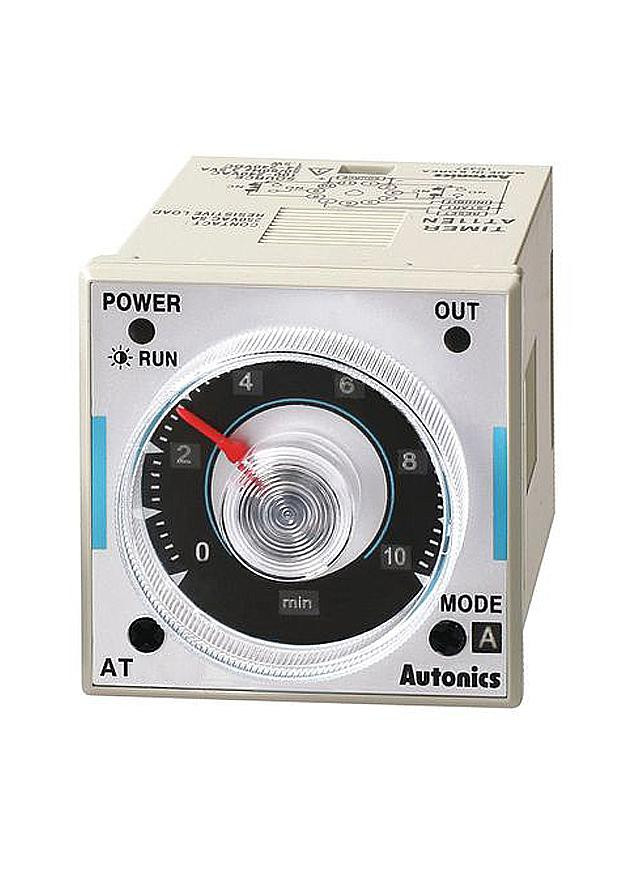

Autonics
AT8PSN-6
Timer, Power OFF Delay, 48x48mm, DIN, Seconds, Analog, 8-Pin Plug, 100-120VAC, 50/60Hz
$71.00
Available Now!
Available Now!
(2 in stock)
AT8PSN
Alt: AT8PSN-220VAC
$71.00
Timer, Power OFF Delay, 48x48mm, DIN, Seconds, Analog, 8-Pin Plug, 200-240VAC, 50/60Hz
- Minimum Purchase:
- 1 unit
Description
Our Autonics AT series are 1/16th DIN multifunction timers.
- AT8 are power ON start
- AT11 are signal ON start
- EN is instantaneous SPDT and time limit SPDT
- DN is time limit DPDT (2c)
- Just 'N' is time limit DPDT (2c) or instantaneous SPDT selectable
AT8 timers will require an 8-pin socket (PG08/PS08) and the AT11 timers require an 11-pin socket (PS11/PG11).
Features Include:
- Time setting range (AT8PSN : 0.05 to 10sec, AT8PMN : 0.05 to 10min.)
- Simple time setup and direct read of time range
- Application : Protect circuit when momentary power failure and start it again
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$71.00
Autonics
AT8PSN-2
Timer, Power OFF Delay, 48x48mm, DIN, Seconds, Analog, 8-Pin Plug, 24VAC, 50/60Hz, 24VDC
$71.00
