Carlo Gavazzi

DBB51CM2410S

$113.90

Timer, Mini, True Delay On, 1-10s, SPDT, DIN Rail, 24VDC/24-240VAC

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DBB51CM2410S
DBB51CM2410S
DBB51CM2410S
DBB51CM2410S
Description
Timer, Mini, True Delay on, 1-10s, SPDT, Din-rail, 24VDC/24-240VAC

Features Include:

  • Time range 1 to 600 s - capacitor powered
  • Knob-adjustable time setting
  • Automatic start after drop-out of power supply
  • Repeatability: ≤ 0.2%
  • Output: 5 A SPDT relay
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 17.5 mm DIN-rail housing (DIN 43880)
  • Combined AC and DC power supply
  • LED indication for relay status and power supply ON
  • Power Supply / Rated operational voltage through terminals: A1, A2 - 24 VDC ± 15% and 24 to 240 VAC +10% -15%, 45 to 65 Hz
  • Rated Insulation Voltage (Output): 250 VAC (RMS)
  • Voltage Interruption: ≤ 40 ms
  • Operating Frequency: < 7200 operations/h

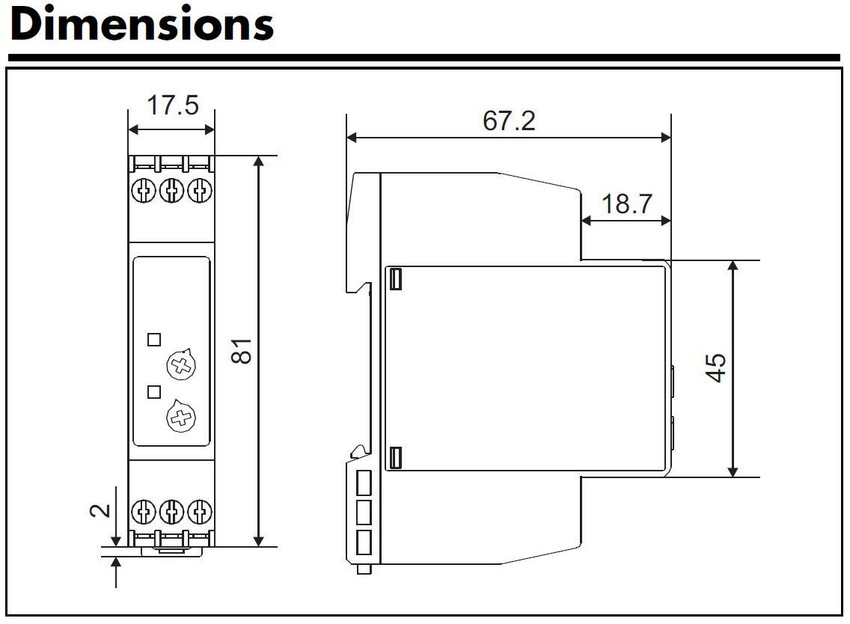

  • Dimensions: 17.5 x 81 x 67.2 mm

Rated Operational Power (Supply):

  • AC Supply: 1.5 VA
  • DC Supply: 0.06 W

Dielectric Strength:

  • Dielectric voltage: 2 kVAC (RMS)
  • Rated impulse withstand voltage: 2 kV (1.2/50μs)
