ISMD23E2-240-M12S

ISMD23E2-240-M12S

Alt: AMCI by IDEC, Non-Cancelable/Non-Returnable

$904.91

Stepper Motor, Sz 23 W/ M12 Con, Modbus TCP, IP64, 240 Oz-In Motor W/ Shaft Seal+Indexer+Drive

Minimum Purchase:
1 unit
Adding to cart… The item has been added
This item is non-cancelable/non-returnable. Two independent motion control axes! Use these steppers with Idec FC6A PLC's.
Description

Many users are frustrated by the complexity and high cost of implementing a motion control system. IDEC and AMCI (an established motion control system supplier) partnered to offer a simple stepper motion control system!

Use these steppers with Idec FC6A PLC's.

The IANF2 controllers offer two independent motion control axes that function in open loop configuration (or in closed loop using the available encoder feedback). Each axis can drive a stepper or a servo with step/direction input capability! The ANF2 can synchronize its two axes allowing you to control linear and circular motions in an XY plane.

AMCI-IDEC IANF2 expansion modules allow you to easily interface up to 12 motion axes using a single network connection which reduces physical wiring and streamlines network traffic.

No other product rivals the flexibility, performance, and value of AMCI-IDEC IANF2 Motion Controllers!

Our IDEC by AMCI product line includes controllers, stepper motors, a combo controller+drive, a combo drive+steper motor and the 3-in-1 controller+drive+stepper motor.

  • Controller (IANF2) - a 2-axis motion controller that is expandable up to 12 axes. It can accept encoder feedback which provides stall detection and move verification. The controller includes 6 discrete inputs and 4 discrete outputs.
  • Drive + Controller (IANG1) - the integrated stepper controller + drive combo is a new approach to PLC-based motion control systems! This system can be expanded up to 6 axes.
  • Stepper Motor (ISM2340) - Available in standard NEMA 23 frame sizes with output torque rating of 130 and 240 oz-in.
  • Stepper Motor + Drive (ISMD23) - This motor-drive combo can control one to six axes of motion plus it combines the features of the two-axes controller and the drive into a single unit!
  • Stepper Motor + Drive + Controller (ISMD23E) - Gives you all-in-one-motion control with all the features of the two-axis controller, drive and stepper motor.

Learn more about the IDEC by AMCI partnership and products here.

Marshall Wolf Automation is your authorized IDEC distributor, in-house tech support is readily available.

Features Include:

  • Motor Step Per Revolution: 200 and 32,767 steps
  • Input Channels: 2 or 3 inputs, programmable
  • Motor Current: 3.4A/phase
  • Stepper motor+drive+controller integrated for optimum performance
  • High-torque, NEMA frame size 23 stepper motor
  • Powerful 3.4 amp, DC-powered microstepping drive
  • Anti-resonance circuitry ensures smooth performance at any speed
  • Space saving design simplifies installation with reduced wiring

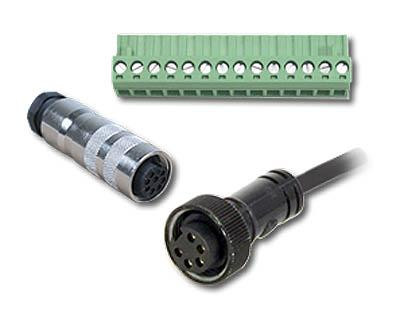

  • Optional M12 connectors for rigorous applications requiring IP50 or IP67 rating
  • Read more: Blog on Stepper Motors
