IDEC
-

RSSAN-90A

$52.62
In stock

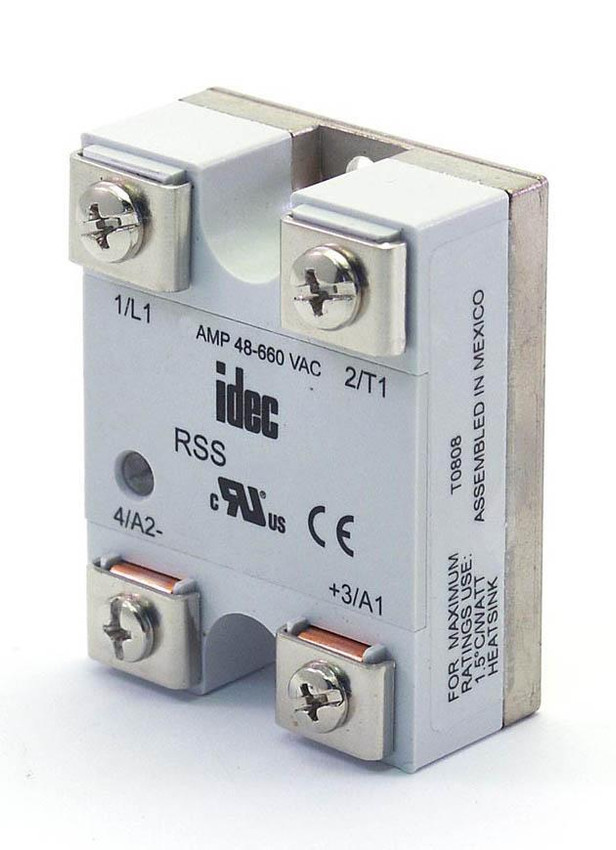

SSR, Hockey Puck, 90A, 90-280VAC Control Voltage, Zero Voltage Turn On, 48-660VAC Operating Range

Our IDEC hockey puck style RSS series of solid state relays allow switching of the most demanding loads.

This panel mount SSR is highly resistant to inrushes and has a built-in snubber, the RSS series is ideal for switching loads such as transformers and heaters.

Available with either DC (4-32V) or AC (90-280V) inputs with output current ratings up to 90A. All models feature zero-voltage turn-on to reduce inrush current and a dual SCR switch (rather than a triac) for enhanced reliability and superior heat dissipation properties.

More Information
Part Number RSSAN-90A
SKU RSSAN-90A
Control Voltage 90 to 280VAC
Amp Rating 90 Amp
Type of Relay Hockey Puck
Output Switching Zero Crossing
Operating Voltage 48-660VAC
Phase Single Phase
Product Series RSS Series
Ratings See Spec
Availability Standard Stock
Weight - lbs. 0.2100
Base Unit of Measure Each
  • Input status LED Indicator
  • Dual SCR output with epoxy free design
  • Direct bond copper substrate with direct output lead frame termination
  • Internal transient protection – built-in snubber
  • EMC compliant (level 3)
  • 1200 Volt blocking voltage
  • 4000 Volt optical isolation
  • Zero crossing voltage turn-on
  • High surge capability
  • Optional fingersafe cover (RSS-CVR)
  • RSSAN has 90-280VAC voltage range
  • RSSDN has 3 to 32VDC voltage range
