Weg
-
SSW900G1400T5E3B
Alternate Part Number:
15827770, Recommended Replacement for SSW061400T2257ESH2Z
$26,575.06
In stock

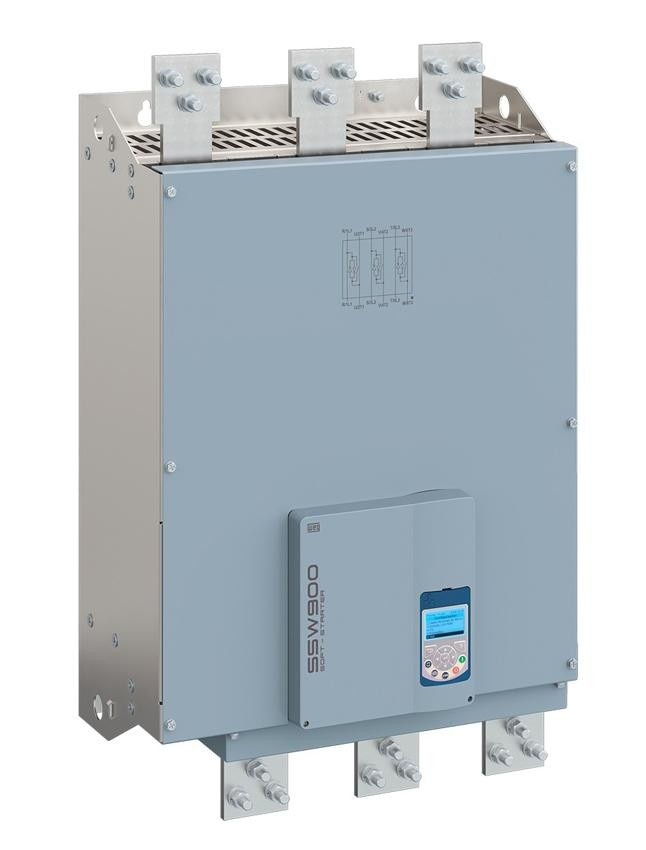

Soft Starter, 3 Phase, 1400 Amp, 230/460/575VAC, 550/1200/1500hp, Frame G: 36.0H x 36.0W x 12.4D”, Protected Chassis Enclosure, (Please review and verify specifications for your application.)
| Part Number | SSW900G1400T5E3B |
|---|---|
| SKU | SSW900G1400T5E3B |
| Alternate Part Number | 15827770, Recommended Replacement for SSW061400T2257ESH2Z |
| Weight - lbs. | 359.100000 |
| Base Unit of Measure | Each |
| Horsepower | See Spec |
| Voltage | 220 to 575VAC |
| Warranty | See Spec |
| Phase | Three Phase |
| Options | Keypad |
| Ratings | IP00 |
| Product Series | SSW900 Series |
| Amp Rating | 1400 Amp |
| Availability | Please Contact Us |
| Manufacturer | Weg |
Features Include:
- Rated current: 1400 A
- Power supply: 220-575 V
- Frequency: 50/60Hz
- Number of controlled phases: 3 phases
- Frame: G
- Height: 914 mm / 36.0 in
- Width: 539 mm / 21.2 in
- Depth: 316 mm / 12.4 in
- Built-in rated (AC1) bypass contactors for all models
- Conformal coated circuit boards
- Detachable Graphic HMI with USB port, with built-in Bluetooth and copy function
- Oriented start-up and online help
- Real time clock with event log
- 2 independent slots to connect plug-in modules
- Voltage ramp, Current Limit, Pump Control, Torque control, Current Ramp start modes
- Inputs and outputs with programmable functions (5 DIs, 3 ROs, 1 AO & 1 Motor PTC Input as standard)
- Communication Options: RS-485 (Modbus RTU), CANopen, DeviceNet, Profibus DP, Ethernet/IP, Modbus TCP/IP,
- Profinet IO
- SoftPLC Built in
- Integral motor thermal protection
2023-03-11 01:00:19
Technical Information:
- Weg SSW900G1400T5E3B Soft-Starter Datasheet
- Weg SSW900 Soft-Starter Flyer
- Weg SSW900 Soft-Starter Catalog
- Weg SSW900 Soft-Starter Quick References
- Weg SSW900 Soft-Starter Quick Installation Guide
- Weg SSW900 Soft-Starter User's Manual
- Weg SSW900 Parameter Structure
Options & Accessories Technical Data:
- Weg SSW900-HMI-BLT Bluetooth Graphic HMI Installation Guide
- Weg SSW900 KMD-CBxx User's Guide
- Weg SSW900-CAN-W CANopen Module User's Guide
- Weg SSW900-CAN-W DeviceNet Module User's Guide
- Weg SSW900-CAN-W Operation on DeviceNet network using Rockwell ControlLogix PLC Application Note
- Weg SSW900-CPDP-N Anybus Profibus DP Module User's Guide
- Weg SSW900-CPDP-N Anybus Profibus DP Module Installation & Operation Guide
- Weg SSW900-CPN-IO-N Anybus PROFINET IO Module User's Guide
- Weg SSW900-CPN-IO-N Anybus PROFINET IO Module Installation & Operation Guide
- Weg SSW900-CRS485-W Modbus RTU User's Guide
- Weg SSW900-CRS485-W Modbus RTU Installation & Operation Guide
- Weg SSW900-CMB-TCP-N Anybus Modbus TCP User's Guide
- Weg SSW900-CMB-TCP-N Anybus Modbus TCP Installation & Operation Guide
- Weg SSW900-CDN-N Anybus DeviceNet User's Guide
- Weg SSW900-CDN-N Anybus DeviceNet Installation & Operation Guide
- Weg SSW900-PT100-W RTD Temperature Module Installation & Operation Guide
- Weg SSW900-KECA-xxx External Current Acquisition Kit Installation & Operation Guide
- Weg SSW900-CETH-IP-N Anybus EtherNet/IP User's Guide
- Weg SSW900-CETH-IP-N Anybus EtherNet/IP Installation & Operation Guide
- Weg Soft-Starter Recycling Instructions and Environmental Information Guide
