GPH2250PC4000

GPH2250PC4000

Alt: Combination Soft Starter

$9,205.14

Soft Starter, 250hp, 312A, 3 Phase, 460-480VAC, NEMA 4/12 Enclosure with Ext. AC3 Bypass with Circuit Breaker & No Keypad

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Combination soft starter that only requires input power and output motor connections!
Description

Looking for quick installation and easy start up?

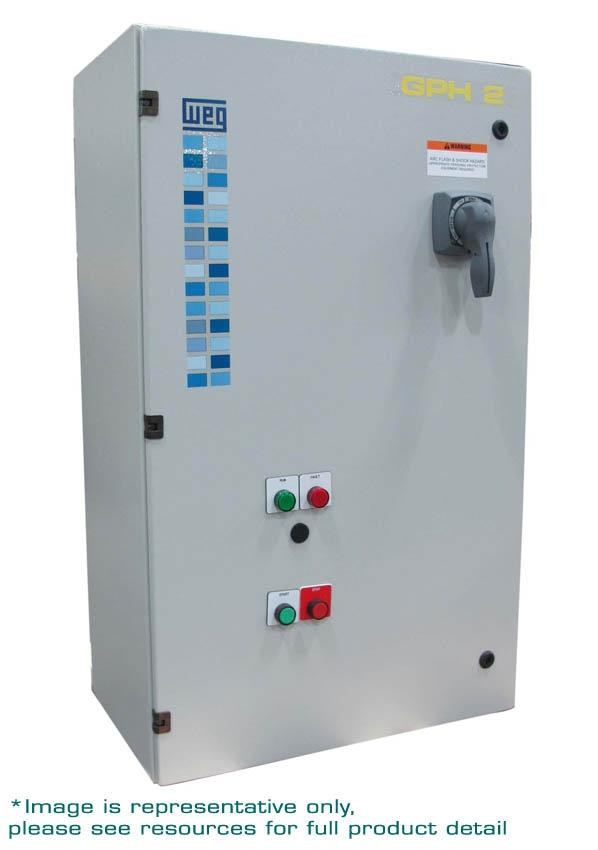

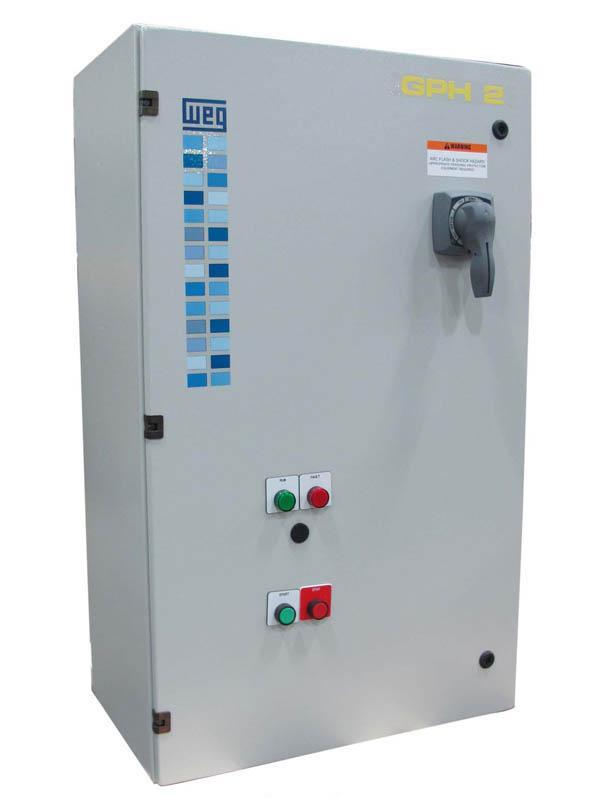

Our WEG GPH2 is a combination soft starter that requires only input power and output motor connections!

Check individual models for these options:

  • AC3 by-pass contactor and DOL selector switch
  • Door mounted keypad
  • 575V AC supply
  • SUSE service entrance rated

The GPH2 is great for centrifugal pumps, screw compressors, centfigual fans, wood chippers, lathes, saws and conveyors.

Ideal when used with WEG motors!

Features Include:

  • Rated for 300% for 30 seconds 4 x per hour
  • 5 - 500HP at 230V
  • 10 – 1200hp at 460V
  • Wall mounted enclosures for SSW07 (from 17 - 200Amps) NEMA12
  • Floor Mounted enclosure for SSW06 (from 255A – 800A) NEMA12

Standard Panel Includes:

  • Soft Starter:
    • SSW07 for GPH2 from 17 to 200A (all models with integrated AC1 by-pass)
    • SSW06 for GPH2 from 255 up to 800A (all models with integrated AC1 by-pass)
  • Circuit Breaker Through Door Disconnect
  • Control Power Transformer
  • Start/Stop pushbuttons

Optional Features:

  • AC3 by-pass contactor and with Soft Starters and DOL Selector Switch
  • Door mounted keypad
  • NEMA 3R Enclosure
  • NEMA 4 Enclosure
  • Rain/Sun Shield for Outdoor Installation
  • 575V

Applications:

  • Centrifugal Pumps
  • Screw Compressors
  • Wood Chipper
  • Veneer Lathe
  • Saws
  • Conveyors
