WEG SRW01 series are smart relays that provide protection, control, data magagement and diagnosis of low voltage electric motors.
These smart relays can be used in several industrial network protocols and can be expanded with more digital inputs and outputs.
Plug and play connectors, free WLP programming software and a USB communication port makes this a great solution!
Models available with:
Modbus-TCP
PROFINET IO
EtherNet/IP
Modbus-RTU
Profibus
DeviceNet
Marshall Wolf Automation is your authorized WEG distributor!
Features Include:
Digital Input Voltage: 24VDC
Supply Voltage: 110-240VDC 50/60Hz
Protection: PTC - Temperature Sensor
Reliable operating modes and command
Status LED indicator that simplifies the identification of the operation
User-friendly interface
6 digital inputs, 4 outputs

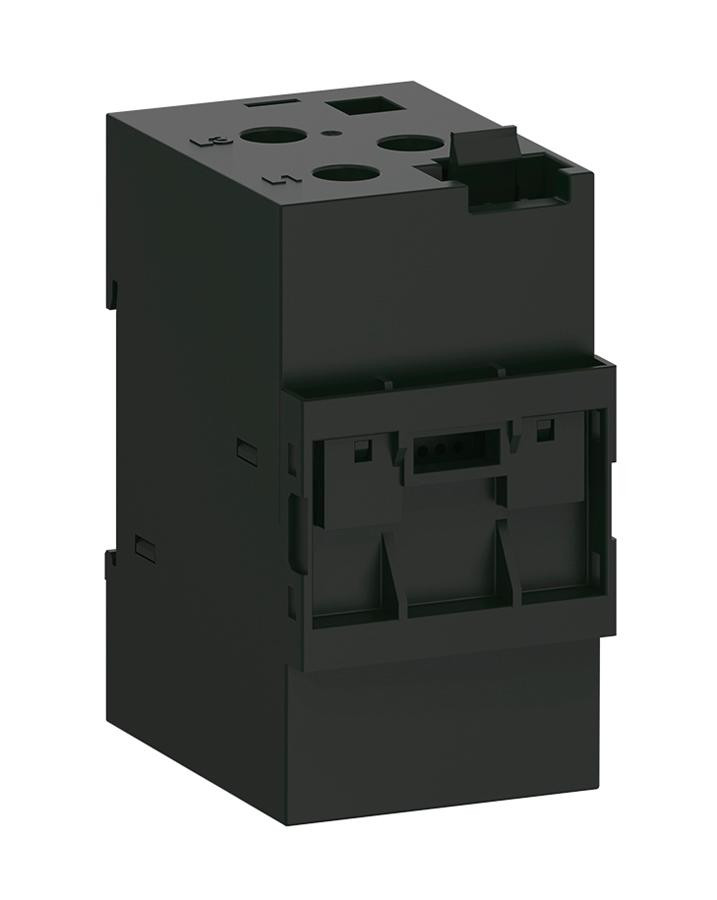

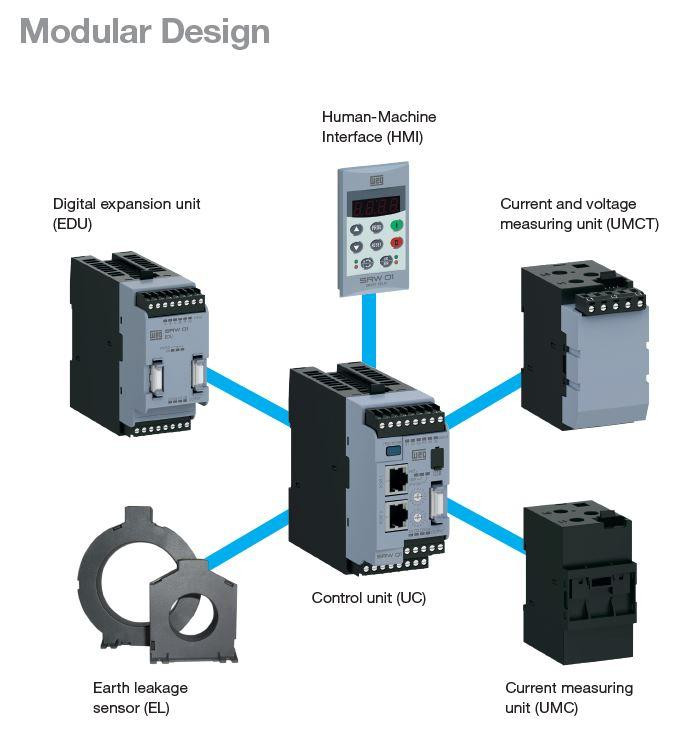

The Control Unit (UC) can be assembled with the Current Measuring Unit (UMC) or current and voltage measuring unit (SRW01-UMCT), forming a single unit, or separated (up to 2 meters).
Control Unit (UC) input power range: 110-240 V ac/dc or 24 V ac/dc
Control Unit (UC) with 4 digital inputs and 4 digital outputs
DIN rail or screws mounting
Easy network module change, via exclusive drawer system
Programming via free WLP software or HMI (optional)
Can be parameterized, programmed and monitored in three different ways:
Via networks (DeviceNet, Profibus-DP, Modbus-RTU, EtherNet/IP, Modbus-TCP and PROFINET IO)
