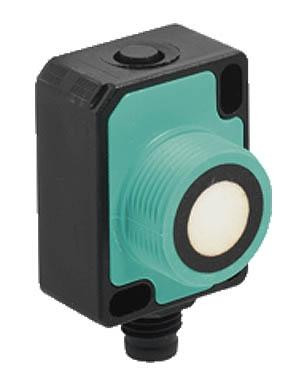

Sensor, 60-800mm, 4 in 1 Switch Point, M8 Integral (V31 Type), IP67

The Pepperl+Fuchs UC-77 series are ultrasonic sensors that offer you a flexible solution with a wide range of features and adjustment options.

A few features that stand out:

  • Minimal dead band for reliable short-range detection
  • Advanced sensor functions ensure complete process reliability
  • Quick commissiong with IO-Link integration
  • Precise and reliable; high noise immunity
More Information
Part Number 261244
SKU 261244
Alternate Part Number UC800-F77S-EP-IO-V31
Manufacturer Pepperl+Fuchs
Availability Please Contact Us
Size Rectangular
Output See Spec
Product Series F77 Series
Weight - lbs. 0.100000
Base Unit of Measure Each

Features Include:

  • IO-link interface for service and process data
  • Programmable via DTM with PACTWARE
  • Continuous distance value via IO-Link process data
  • Selectable sound lobe width
  • Synchronization options
  • Temperature compensation
  • Push-pull output
