MLC500T30-600

MLC500T30-600

Alt: 68000306, Non-Cancellable / No Returns

$827.00

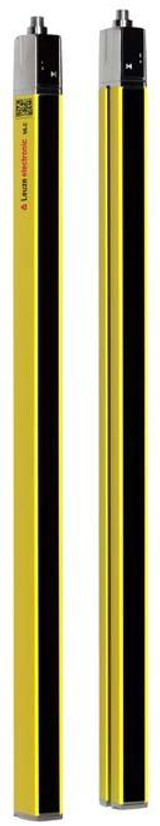

Safety Light Curtain Transmitter, 30mm Resolution, 600mm Field Height, NCNR

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please order a transmitter and receiver with the same resolution and protective field height (see accessories). Most light curtains can ship in 3-5 days! Expedite fee available for even quicker shipment.
Description

Our Leuze MLC 500 is a Type 4 basic safety light curtain that is orderable online with 30mm resolution and a protective field height from 150mm to 3000mm.

These safety light curtains can be used vertically as hand and finger protection, for access guarding and also horizontally as area protection.

With the flexible fastening concept and option for form-locking installation, these light towers can be universally used!

Please note you will need to order a transmitter and a receiver of the same resolution and the same protective field height. Please see accessories.

Marshall Wolf Automation is your authorized Leuze Electronic distributor! Please contact us for additional resolutions and features.

Learn more about Leuze's MLC 500 Series with their product video below!

Features Include:

  • Basic MLC500 Type 4 safety light curtain
  • Range reduction on the transmitter
  • Selectable transmission channel
  • LED indicators
  • Automatic start/restart
  • Addtional resolutions and models are available
  • We currently show 30mm resolution and field height from 150mm to 3000mm

Supply voltage

  • 24 V, DC, -20 - 20 %

Protective field height

  • 600 mm

Operating range

  • 0 - 10 m

Dimension (W x H x L)

  • 29 mm x 666 mm x 35.4 mm

Type of fastening

  • Groove mounting, Mounting on Device Column, Swivel mount, Mounting bracket

Housing material

  • Metal, Aluminum

Thread size

  • M12

Number of Pins

  • 5-pins

Synchronization

  • Optical between transmitter and receiver

Light source

  • LED, Infrared

LED light wavelength

  • 940 nm
