SLC440COM-ER-0570-35

SLC440COM-ER-0570-35

Alt: 103004002, Includes Emitter/Receiver/Mtg Hardware

$1,658.00

Safety Light Curtain, 570mm Protection Ht/35mm Res, Zero Dead Space, Automatic/Restart Modes

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

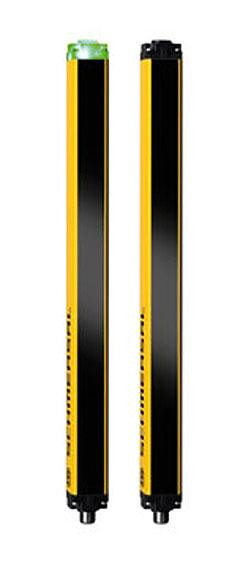

Our Schmersal SLC440COM is a series of Type 4 safety light curtains that are used to protect hazardous areas. Available in 14, 30 or 35mm resolutions and protection field heights between 330 and 1770mm.

This part number includes a emitter, receiver and mounting hardware.

This series has zero dead space which gives you a fully protected height for the entire length of the light curtain! Ideal for applications with space limitations or that need full length protection.

This series is a one-piece extruded reinforced housing in a compact 28mm x 33mm rectangular profile.

The SLC440COM is basically the SCL440 Type 4 safety light curtain without the 7 segment display and many of the integrated functions. The SLC440COM offers automatic and restart modes which gives you a cost-effective option!

This series is suited for use in safety circuits up to PLe (EN 13849) or SIL3 (IEC 61508).

Popular applications include:

  • Power driven machines
  • Power presses
  • Brake presses
  • Punching machines
  • Robot cells
  • Printing machines
  • Palletizers
  • Packing equipment
  • Material handling

Accessories include:

  • Please note each light curtain set would require TWO cables (they are sold each)
  • KA-0804 - 5 meter cable, M12, 4 pole for automatic reset
  • KA-0805 - above but 10 meter
  • KA-0808 - above but 20 meter
  • 101209949 - 5 meter cable, M12, 5 pole for manual reset
  • 101209948 - above but 15 meter
  • A complete range of deflection mirrors from 200 to 1700mm height (part number ULS-MLC-xxxx)
  • Safety controllers - stock items include SRB-324ST, SRB-E-201ST, SRB-301MC, SRB-E-201LC, SRB-E-204ST

Features Include:

  • Detection Ability for Test Bodies: 35
  • Number of Beams: 19
  • Switching voltage of the OSSD in high state: 24 VDC ± 10%
  • Safety type in accordance with IEC 61496-1: 4
  • Range of the protection field: 300 - 7000
  • Design of output switching element OSSD: PNP
  • Dimensions: 611 (H) x 27.8 (W) x 33 (L) mm
  • Housing Material: Aluminum
  • User-friendly parameter setting, no tools required
  • Reliable safety concept in case of interferences (EMC, welding sparks)
  • Process safety with highest availability
  • Integrated set-up too

Connection:

  • Wiring of the Transmitter: Connector plug M12, 4-pole
  • Wiring of the Receiver: Connector plug M12, 5-pole
