KER416RS UL

KER416RS UL

$783.13

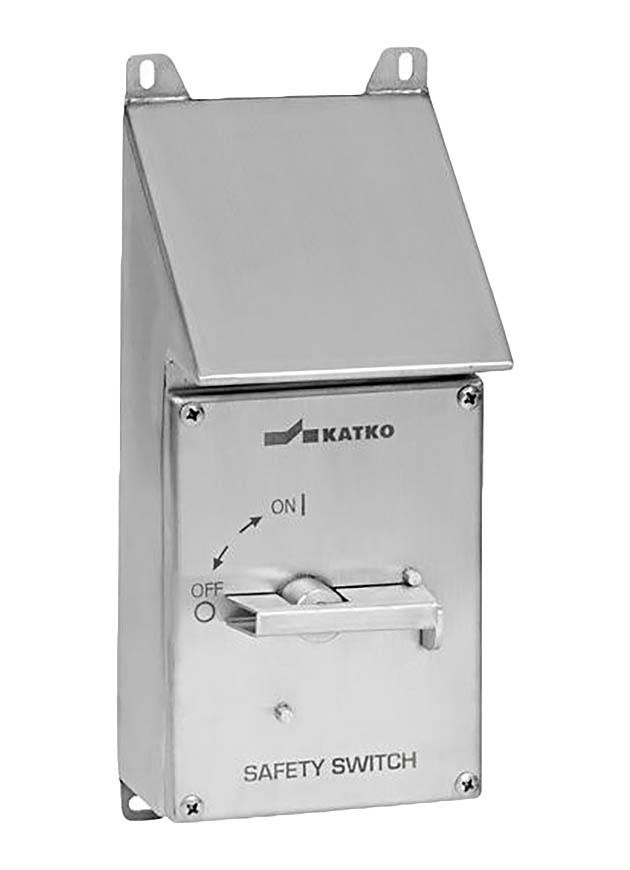

Safety Disconnect, SS, Angled Top, 16A @ 400V, H24T Enclosure, KU 416N Switch, NEMA 4X/IP66

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Altech’s new UL Type 4X, IP66 Stainless Steel Safety Disconnect Switches are enclosed, non-fused and ideal for hygienic and harsh environments!

This series is easy to install and clean, acid proof, AISI 316 and have a padlockable stainless steel handle. These disconnect swtiches are available from 16 - 80 Amps.

Part numbers ending in R are without angled top, part numbers ending in RS include the rainhood protection with angled top.

  • KER series ending in R or RS are all stainless steel, including handle
  • KER series ending in UL are stainless steel with regular handle

This series was designed for use in food and beverage and mining industries. They are padlockable!

Marshall Wolf Automation is your authorized Altech distributor!

Series Features Include:

  • Designed for hygienic and heavy environments
  • Easy to install and keep clean
  • UL Type 4X, IP66, stainless steel enclosure
  • Acid proof, AISI 316
  • Options available with rainhood protection with angled top
  • Padlockable stainless steel handle
  • 3-4 poles available
  • General Purpose Current: 25A - 150A
  • Maximum Voltage: 600V AC
  • Motor FLA @ 480V AC: 17.5A - 34A
  • Motor FLA @ 600V AC: 11A - 83A
  • 1 Phase and 3 Phase Horsepower Rating
  • Short Circuit withstand Rating at 600V with Max. Fuse
  • Terminal Size Acceptability: 14-8AWG - 4-1/0AWG
