In stock
4 Available

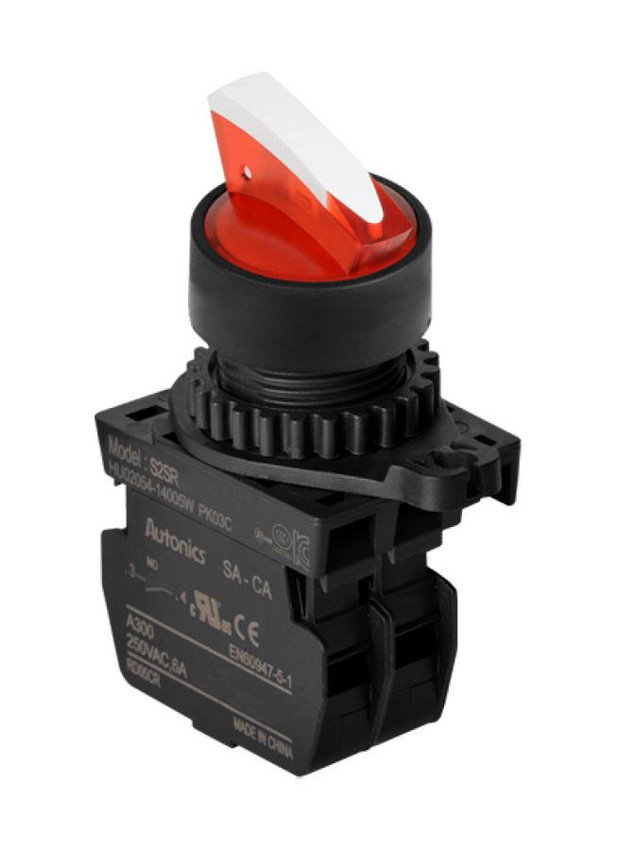

Selector Switch, Ø22mm, 2 Position, Maintained, Short Lever, White, NO, 110VAC/10A, 220VAC/5A
More Information
Part Number S2SR-S3WA
Manufacturer Autonics
Product Type Selector Switch
Pushbutton Type Maintained/Fixed
Size 22mm
NO/NC Normally Open (NO)
Illuminated/Non-Illuminated See Spec
Material See Spec
Product Series S2SR Series
Voltage 110/120VAC
Availability Standard Stock
Weight - lbs. 0.500000
Base Unit of Measure Each

Features Include:

  • Mechanical characteristics Operation angle: Left 45º , Right 45º
  • Contact block Electrical specification Power voltage/current: 110VAC~/10A, 250VAC~/6A
  • Protection structure: IP52
  • Approval: @(KC) @(CE) @(CULUS)(LED blocks are except @(KC) certifications)
  • Weight Mounting hole Ø22/25: Approx. 19g
  • Weight Housing: Approx. 7g
  • Weight Contact block Singular type A/B contact: Approx. 11g
  • Operation type: Short lever 2-position, maintained
  • Color: White
  • Contact block A contact: 1
  • Contact block type: Singular type
  • Environment Ambient temperature: -15 to 55℃, storage: -25 to 65℃
  • Environment Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
