Carlo Gavazzi
-

RGTS24120GV00

Alternate Part Number:
1-PHASE S.STARTER 12A UE:100-240VAC I/P:100-240VAC
$226.95
In stock
Soft Starter, Single Phase, 12 Amp, 100-240VAC (50/60Hz) Operational / 100-240VAC External Supply Voltage, Automatic Start, No Auxiliary Relay Output, IP20, 100.4 x 54 x 113mm (HWD)

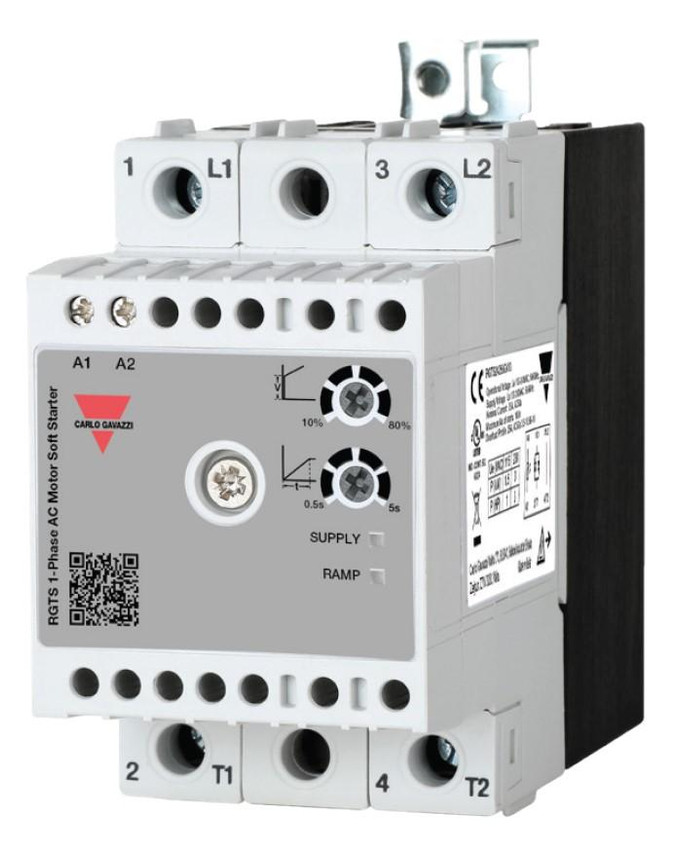

Our Carlo Gavazzi RGTS series is a full solid-state compact and easy to use soft starter for singl ephase two-wire AC induction motors.

Motor ramp-up time and initial torque can be adjusted through the built-in potentiometers. Three amperage ratings are available; 12, 16 and 25.

Ideal for pumps and fans applications!

More Information
Part Number RGTS24120GV00
SKU RGTS24120GV00
Alternate Part Number 1-PHASE S.STARTER 12A UE:100-240VAC I/P:100-240VAC
Weight - lbs. 2.000000
Base Unit of Measure Each
Horsepower See Spec
Voltage 100-240VAC
Warranty 2 Years
Phase Single Phase
Options DIN Rail Mount, Heatsink thru Back
Ratings IP20 Rated
Product Series RGTS Series
Amp Rating 12 Amp
Availability Please Contact Us
Manufacturer Carlo Gavazzi

Features Include:

  • All solid-state device, no bypass relays
  • Universal 120-240VAC line voltage rating
  • Controlled by line voltage
  • Maximum current rating 12, 16 or 25AAC
  • Up to 10 starts per hour at rated current
  • Voltage ramp-up control algorithm
  • Status indicating LEDs
  • CE approved, cULus listed
  • Mounting: DIN Rail
