IDEC
PS5R-VD24
Power Supply, Compact, DIN-Rail Mount, 60W, 24V, 2.5 Amp, UL508/1310, RoHS, Class 1, Div 2
$63.07
Available Now!
Product image is representative only, please verify specifications.
Available Now!
(1 in stock)

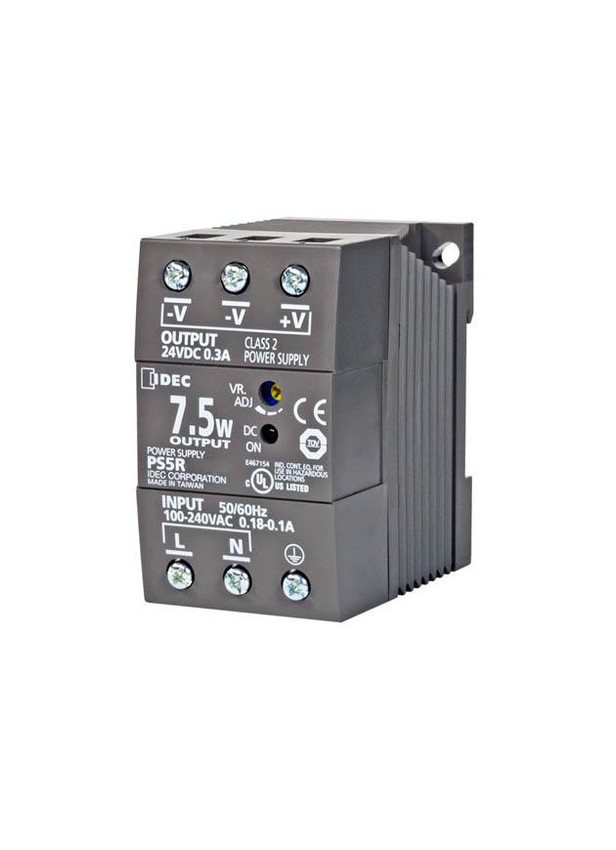

PS5R-VA24
Alt: PS5R-V Series
$40.13
Power Supply, Compact, DIN-Rail Mount, 7.5W, 24VDC Output, 0.3 Amp, UL508/1310, RoHS, Class 1, Div 2
- Minimum Purchase:
- 1 unit
Description
The PS5R-V series takes all the best features from the previous generation (PS5R) and improves them!
This high efficiency series includes expanded operating temperature range, a MTBF of up to 900,000 hours plus numerous approvals and certifications.
- Spring up screw terminals, fused inputs and overload protection
- DIN rail or direct surface mountable (6 directions!)
- Universal input of 85 to 264VAC
- No derating
- 5 year warranty!
- All models under 100W are UL1310, Class 2 approved
- Class 1 Division 2 for hazardous locations
- SEMI F47 for use in sensitive equipment applications (208VAC input)
- RoHS compliant
Series Features Include:
- Rated Input Voltage (Single-phase two-wire): 100 to 240V AC (Voltage range: 85 to 264V AC/100 to 370V DC) (Load ≤ 80% at 100-105V DC)
- Wide operating temperature range
- Spring-up terminals accept ring & fork terminals
- Approved for use in Class I Division 2 hazardous locations
- Can be installed in 6 directions
- Overcurrent protection with auto-reset
- Meets SEMI F47 Sag Immunity (208V AC input)
- Protection Rating: IP20 (EN60529)
- RoHS compliant
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
PS5R-VB12
Power Supply, Compact, DIN-Rail Mount, 15W, 12VDC Output, 1.3 Amp, UL508/1310, RoHS, Class 1, Div 2
$51.60
IDEC
PS5R-VE24
Power Supply, Compact, DIN-Rail Mount, 90W, 24VDC Output, 3.75 Amp, UL508/1310, RoHS, Class 1, Div 2
$108.93
IDEC
PS5R-VA05
Power Supply, Compact, DIN-Rail Mount, 7.5W, 5VDC Output, 1.5 Amp, UL508/1310, RoHS, Class 1, Div 2, IP20, 90 x 22.5 x 95mm (HWD)
$40.13
IDEC
PS5R-VG24
Power Supply, Compact, DIN-Rail Mount, 240W, 24VDC Output, 10 Amp, UL508, RoHS, Class 1, Div 2
$200.66
