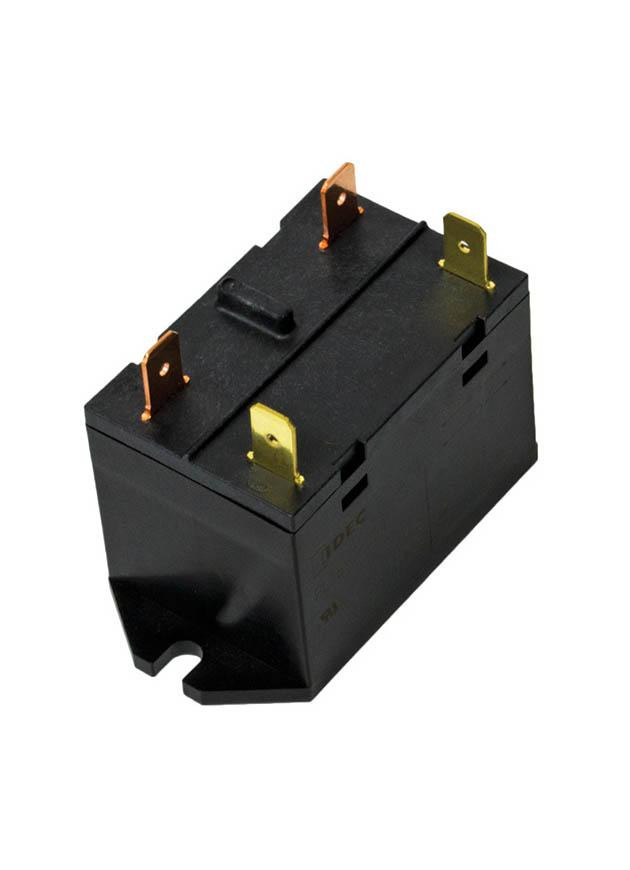

Power Relay, 1 Pole, Quick Connect, 200-240VAC, Flange Mount,

Power relays keep it easy and simple! Choose from 1 or 2 pole models, 3hp/277V AC rated in a compact package.

Our Idec RL relays are ideal for HVAC, motor controls and any application requiring higher inrush current and inductive kick back. They are available in DIN rail mount (-D- in part number) or flange mout (-T- in part number).

These are unique because when you DIN rail mount our Idec RL series they do not require a socket or adapter!

Screw terminals (RLxN) are best for industrial applications while the quick connect terminals (RLxB) allow faster installation on commercial applications.

More Information
Part Number RL1B-T-A200
Poles 1 Pole
Voltage 220/240VAC
Type of Relay Power Relay
Options DIN Rail Mount
Amp Rating See Spec
Product Series RL Series
Availability Standard Stock
Weight - lbs. 0.0400
Base Unit of Measure Each
  • Smaller than a 30 amp contactor!
  • 3HP at 277VAC, 1.5HP at 120VAC
  • Single pole rated at 30A (RL1), double pole at 25A (RL2)
  • Double break contacts
  • Flange mount (-T-) or DIN-rail mount (-D-) with panel mount tabs
  • #250 quick-connect (RLxB) or screw terminations (RLxN)
  • AC or DC Coil Inputs
  • Designed for motor, heater or lighting loads
  • Up to 7500 VA maximum switching power
  • RoHS compliant
