IDEC
-

S5N-MA-5-C01-PP

Alternate Part Number:
This item Replaced S50-MA-5-C01-PP
$74.26
In stock

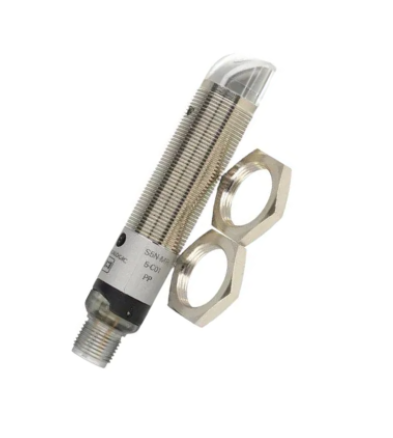

Photoelectric Diffuse Sensor, PNP NO/NC, M12
More Information
Part Number S5N-MA-5-C01-PP
SKU S5N-MA-5-C01-PP
Alternate Part Number This item Replaced S50-MA-5-C01-PP
Type of Photoelectric General Purpose Photoelectric
Sensing Method Diffuse Reflective
Size See Spec
Connection M12, Straight
NPN or PNP PNP (Source)
Ratings IP67
Manufacturer IDEC
Availability Please Contact Us
Weight - lbs. 0.100000
Base Unit of Measure Each

Series Features Include:

  • Consumption (output current excluded): 35 mA max. (mod. S5N...B01/C01/C21/E01/T01)
  • Light emission: IR LED 880 nm (mod. S5N...C01/C21/G00)
  • Output PNP; NO; NC (mod. S5N)
  • Output current 100 mA max.
  • Saturation voltage: 2 V max.
  • Response time: 0.5 ms (mod. S5N...B01/T01/C21/C01/E01)
  • Switching frequency: 1 kHz (mod. S5N...B01/T01/C21/C01/E01)
  • Connection: M12 4-pole connector
  • Dielectric strength: 500 Vac, 1 min between electronics and housing
  • Insulating resistance: >20 MΩ, 500 Vdc between electronics and housing
  • Mechanical protection: IP67
  • Ambient light rejection according to EN 60947-5-2
