Teco Westinghouse


In stock

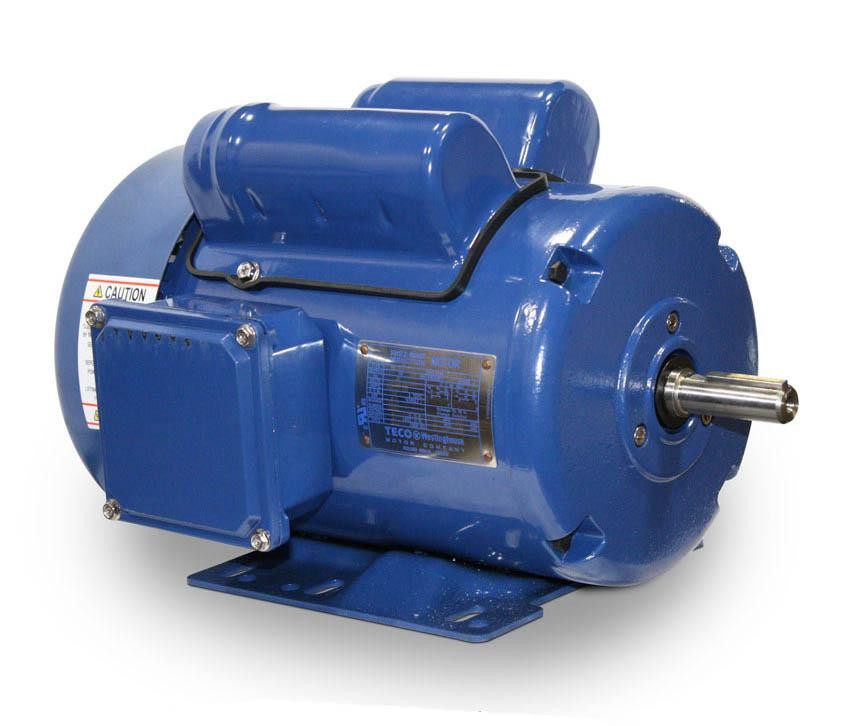

Motor, Single Phase, 3hp, 3600rpm, 208-230V, 56H Frame, TEFC, HVAC, NEMA Premium, IP44
  • Available in 3600 and 1800 rpm
  • TEFC - totally enclosed fan cooled, IP44
  • Voltage: 115/208/230; 3hp and larger are 208-230V
  • Capacitor start, capacitor run
  • Class F insulation
  • Designed for 40°C ambient temperature and 3300 foot elevation
  • Bi-directional rotation
  • Rolled steel frame
  • 1045 carbon steel shaft

Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.

Marshall Wolf Automation is your authorized stocking Teco distributor!

More Information
Part Number SPHT0032
Motor Type TEFC, Rolled Steel
Mounting Footed (Rigid Base)
Horsepower 3 hp
RPM 3600
Phase Single Phase
Ratings IP44
Frame 56H
Voltage 208/240VAC
Warranty See Spec
Availability Please Contact Us
Weight - lbs. 56.0000
Base Unit of Measure Each

Features Include:

  • Capacitor Start, Capacitor Run
  • Class F Insulation
  • Automatic Reset Overload
  • Class B Temperature Rise
  • Designed for 40√Ä√∂C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • Rolled Steel Frame
  • Cast Aluminum Terminal Box
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
  • Paint Color: Blue - Munsell 5 PB 3/8
  • Double Shielded Bearings Pre-Packed with Lithium Base Grease
  • No Terminals; Lead End Peel-Off Insulation
  • Grounding Terminal Inside Main Box
  • Stainless Steel Nameplate
  • Motors are UL Recognized for United States and Canada
